Quick-frozen food packaging machine automatic cuttlefish cake to pre-made bag packaging machine


The quick-frozen food-cuttlefish cake is packed in the video, and the customer uses pre-made bags (stand-up pouches), so the quick-frozen food is packaged in the bag packaging machine, and the bag packaging machine host is equipped with a large inclination feeder for loading The computer combination weigher is used for weighing measurement and supporting platform. The weight of the packaging in the video is 500g.

Machine Component

1) Main packing machine   2)  Material conveyor  3) 10 heads weigher

More detailed of premade bag packing machine:


Bag opening device:


Clamping bag device


Sealing device

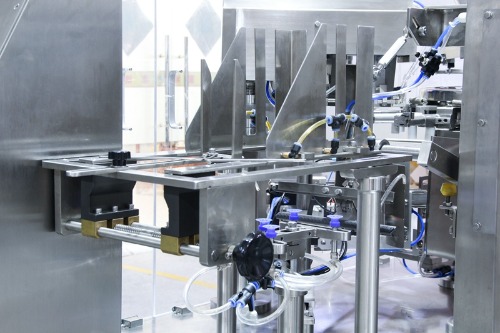

1. Bag opening device:

Bag opening device: Automatically take and open bags, reduce labor costs, and have a high degree of automation.

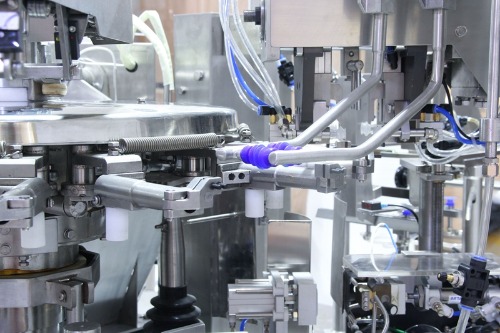

2. Clamping bag device :

It is controlled by a mechanical linkage transmission device, which is stable in operation and is not affected by air pressure

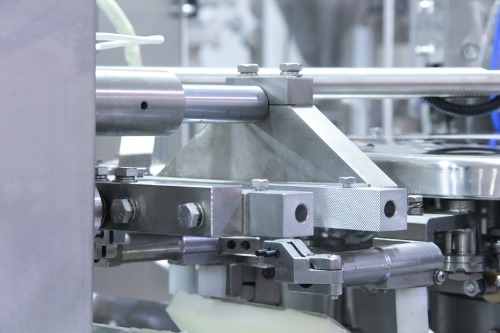

3. Sealing device:

Two sealing devices, novel mechanism design, the bag is sealed evenly, with good flatness, beautiful and durable.

Machine introduction:

The bag-type automatic packaging machine replaces manual packaging, and realizes packaging automation for large enterprises and small and medium-sized enterprises. The operator only needs to put the finished bags one by one, and put hundreds of bags in the bag picking department of the equipment at a time. , The mechanical claw of the equipment will automatically take the bag, print the date, open the bag, give a signal to the measuring device, and blank, seal, and output.

Machine function:

Customers can also add detailed functions such as emergency stop, automatic card insertion, and abnormal discharge according to product packaging requirements. The entire packaging process does not require manual operations, which effectively improves your company's production efficiency, saves labor and management costs, and greatly reduces Cost.

Performance characteristics:

1 This machine has a wide range of packaging applications. It can be applied to prefabricated bags and paper bags made of multi-layer composite films, with low packaging material loss and good sealing quality.

2. The packaging specifications can be changed quickly, and the width of the automatic bagging equipment can be easily and quickly adjusted by adjusting the handle.

3. The machine is equipped with a detection device, which can detect that the filling equipment does not fill and the heat sealing equipment does not seal when there is no packaging machine or the packaging bag is not opened, so as to avoid wasting packaging materials and raw materials.

4. Frequency conversion speed regulation, this machine uses frequency conversion speed regulation device, which can be adjusted freely within a certain range according to actual needs during production.

5. Adopt advanced PLC plus POD (touch screen) electrical control system, simple operation and easy to learn.

6. The horizontal bag delivery mode, the bag storage device can store more packaging bags, the quality of the bag is lower, and the bag splitting and bag loading rate is high.

7. The zipper bag opening mechanism is specially designed for the characteristics of the zipper bag opening to avoid deformation or damage of the bag opening

8. Servo motor zipper opener: The servo motor can control the speed, and the positioning accuracy is very accurate, which greatly improves the accuracy of zipper opening and has high stability.

9. Using built-in cam system, high processing technology requirements, to ensure that the machine runs stably at a speed of 65 bags per minute

10. Beautiful appearance, easy to clean and maintain, adopt high-tech control, internal grooved cam, long service life.

The pre-made bag automatic packaging machine adopts advanced PLC plus POD (touch screen) electrical control system, friendly man-machine interface, convenient operation, and equipped with a detection device, which can detect when the machine has no packaging or the bag is not opened Bottom makes the filling device not fill, and the heat sealing device does not seal, so as to avoid wasting packaging materials and raw materials. The equipment uses a frequency conversion speed control device, which can be adjusted within a certain range according to actual needs during production. The size of the packaging bag can be quickly changed. The width of the automatic bag feeding device may be easily and quickly adjusted by adjusting the handle. When adjusting the specifications, each mechanical claw distance can be easily and quickly adjusted. Only one bolt is needed to complete the conversion of 10 pairs of mechanical jaw specifications, which is easy to operate. The normal service life is more than 10 years.

Packaging process:

1. Bag loading: The bag is sent to the machine clip by the method of removing and removing the bag, and there is no bag warning, which reduces the employment and labor intensity;

2. Print production date: Ribbon detection, alarm when the ribbon is used up, and touch screen display to ensure normal coding of the packaging bag;

3. Open the bag: open the bag to detect, do not open the bag, no blanking, to ensure that the material is not lost;

4. Filling materials: testing, the materials are not filled, heat-sealed and not sealed to ensure that the bag is not wasted;

5. Heat sealing: alarm for abnormal temperature to ensure sealing quality

6. Cooling, shaping and discharging: to ensure beautiful sealing.


The granule-to-bag packaging machine is suitable for various granular materials, such as puffed food, biscuits, candies, nuts, preserved fruits, toy products, hardware accessories, quick-frozen food and so on.


There are many types of packaging bags for the pellet bag packaging machine: four-side sealing bag, eight-side sealing bag, zipper stand-up pouch, stand-up pouch, etc.

Model

SK-G200Y6-D10T

Pouch type

Stand bag,zipper bag ,flat bag(3 side seal,4 side seal,bag with punched tote handle ,pillow bag )

Size of bag

W:100-200mm;L:100-400mm

Filling bag

10-2000g

Packaging speed

20-60bags/min(depond on it products and filling weigh )

Packing accuracy

≤±1

Power supply

380V,50Hz/60Hz,3.5KW

We need to know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size.This is a Multi-function Automatic Premade Stand Up Zipper Pouch Bag Doypack Packing Machine, customers' common questions are as follows.

1. Judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 3. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 4. How many days does it take to produce a machine? The production time is about 30-45 days, because our machines are installed and debugged at the same time, so as to ensure high quality. 5. The customer also asked how long is the machine warranty period? We offer 12 months warranty, starts from the issue date of bill of loading and life time maintenance service. 6. Customers most often ask how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.

Troubleshooting common basic faults of premade bag packaging machines

The premade bag packaging machine has brought a qualitative leap to the enterprise and realized the change from the backward packaging method to the automated packaging. It not only saves a lot of costs for the enterprise, but also greatly improves the production efficiency of the enterprise.

However, as long as it is a machine, there will be malfunctions, and the bag packaging machine is no exception. Therefore, companies usually master some basic troubleshooting when operating the packaging machine, which minimizes the impact on production.

1. Rotary knitting failure of the cutting knife of the bag packaging machine.

Possible cause of failure: Spinning damage or boundary problem.

Solution: Change a phase rotary encoder input and check the wiring.

2. The cutter motor of the bag-feeding packaging machine is faulty.

Possible cause of failure: motor damage or inverter failure or mechanical jam.

Solution: Check the corresponding fault point.

3. The feeding motor of the bag packaging machine is faulty.

Possible cause of failure: motor damage or inverter failure or mechanical jam.

Solution: Check the corresponding fault point.

4. System failure.

Possible cause of failure: Controller self-check failure. Solution: Contact the supplier. If the fault has been eliminated, just press the ESC key and the system will automatically return to the running screen.
