Factory Price Super Absorbent Polymer Sap/gel packing machine


The packaging weight of the vertical automatic liquid packaging machine in this video is 450 g. This machine is mainly used by the main unit of the 420 packaging machine + rotor pump + storage hopper. This video packs 1kg of water at a speed of 20 packs per minute. The packaging error is small and the accuracy is high. The specific price needs to be determined according to the needs of each customer and the degree of automation.

Gel packing machine 's companent:

1) Mian packing machine 2)  Liquid pump

Some detaied pcitures of Super Absorbent Polymer Sap packing machine:

material stroage hopper.jpg

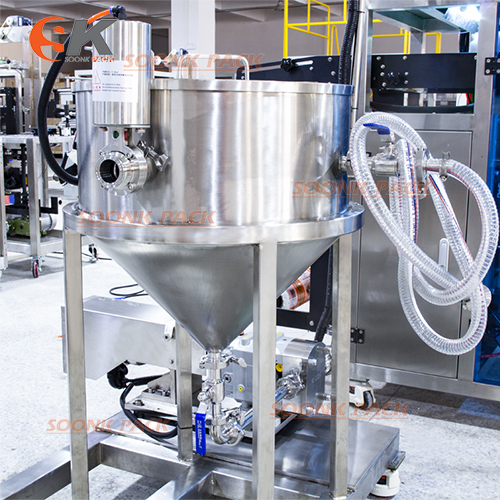

Material storage hopper

Liquid pump.jpg

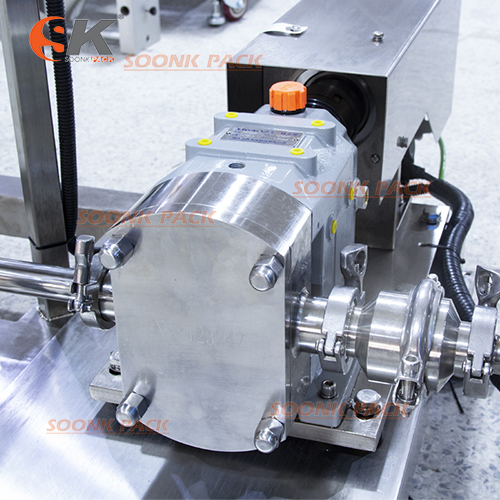

Rotary pump metering device

bag former system.jpg

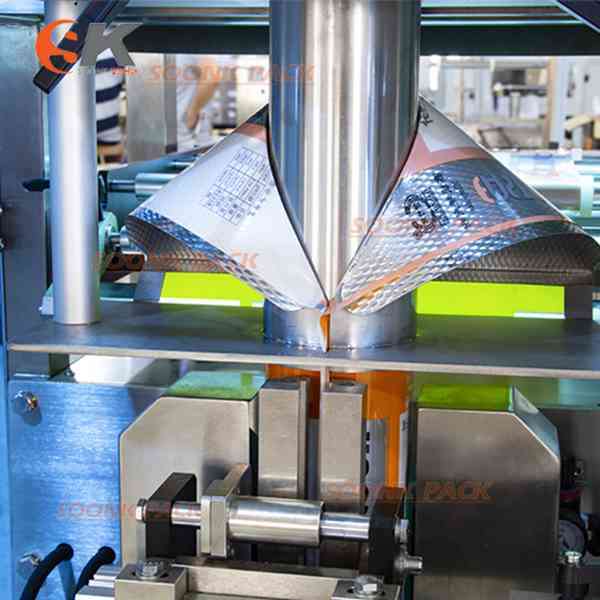

Collar type bag former

date printing system.jpg

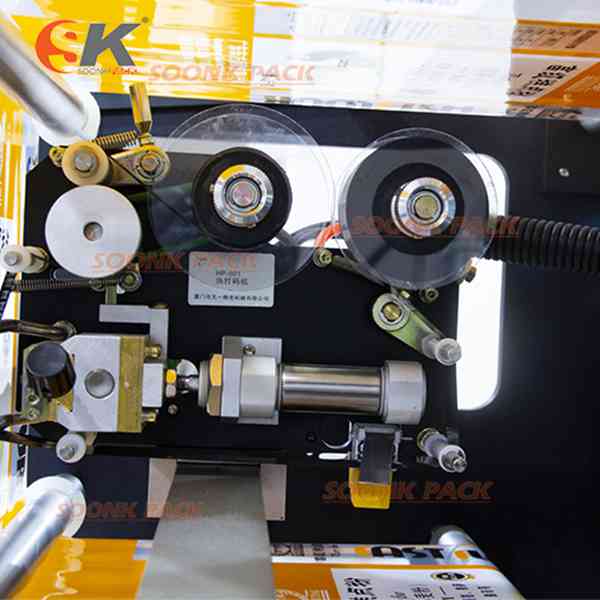

Date Printer device

Film transport system.jpg

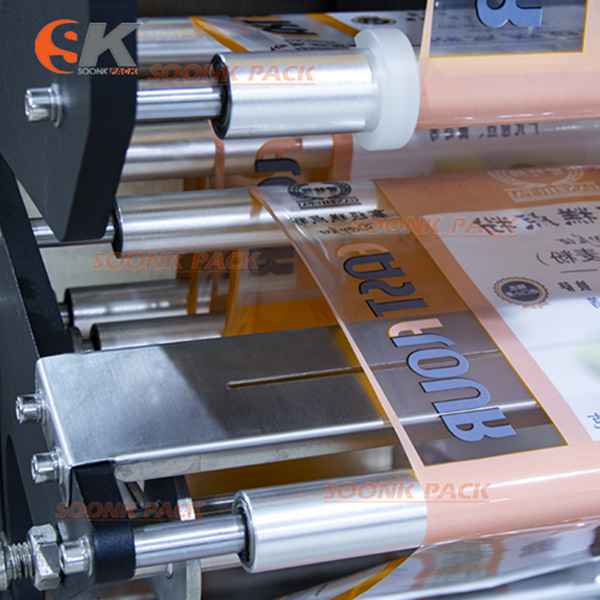

Film release  device

horinzaotal sealing system.jpg

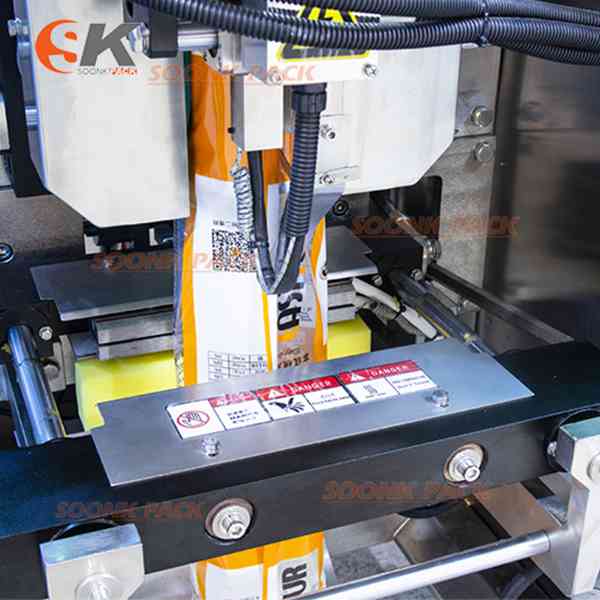

Horizontal sealing device

Material storage device: It is made of 304 food grade stainless steel, and stores related packaging materials with large storage capacity.

Rotary pump metering device: It adopts external dynamic and static ring mechanical seals, which can be directly washed with water, is resistant to high pressure, is not easy to wear, and has no leakage; small size, large flow, high head pressure, suitable for long-distance and high resistance quantitative transportation.

Collar type bag former: This machine adopts a specific lapel bag former, which makes the film stretch run stably and improves efficiency; it is not easy to run the film and the forming is more beautiful.

Date Printer device: The packaging machine is equipped with a coding machine device, which automatically prints the production date and can print three lines. The font size is: 2*4mm.

Film release  device: The film unloading device of the packaging machine adopts an external film putting mechanism, which is convenient and quick to replace the packaging film.

Horizontal sealing device: Double-sided heat-sealing cutting knife is used, so that the horizontal sealing can be quickly heated and can cut perfect packaging bags.

Introduction of liquid quantitative packaging machine

It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and can be configured to print batch numbers and other functions according to customer requirements. Adopt advanced microcomputer controller, drive stepping motor to control bag length, stable performance, convenient adjustment and accurate detection. It adopts stepless speed regulation and can be equipped with different feeding mechanisms to pack powder and other items.

The performance characteristics of the vertical Gel automatic packaging machine:

1. The vertical gel automatic packaging machine adopts the main machine of 420 packaging machine, which is made of 304 stainless steel, which has the characteristics of anti-rust and anti-corrosion;

2. The packaging machine adopts a servo double-pull film system to ensure the smooth delivery of the packaging film and the smoothness of the bag;

3. Imported brand air cylinders are used to ensure good sealing of the bag and clear sealing lines to prevent air leakage when sealing the bag when packaging products and reduce the waste rate;

4. Adopt PLC control, imported driver, equipped with imported brand touch screen, man-machine interface. High degree of automation, simple operation procedure, high sensitivity of touch screen;

5. Multi-language operating system selection, you can choose according to your own requirements;

6. Using an external film placement mechanism, it is easier and faster to replace the packaging film;

7. The metering adopts rotor pump, which is a positive displacement pump. The characteristics of low speed, high output torque and high temperature resistance enable the rotor pump to show its skills in the field of conveying high viscosity and high temperature materials. Its working principle cooperates with the use of a powerful drive system. To ensure that the rotor pump can output a strong driving torque at low speed, it can ensure continuous and non-stop conveying of materials, and it can ensure that the material performance of the material during the transportation process will not be damaged. This kind of pump can transport the medium The viscosity can be as high as 1000000CP.

8. All parts of the rotor pump in contact with materials are made of stainless steel materials that meet the sanitary standards, which can meet the sanitary and corrosion-resistant applications in all food, beverage, pharmaceutical, chemical and other industries.

Precautions:

Due to the rich variety of liquid products, there are also many types and forms of liquid product packaging machines. Among them, liquid packaging machines used to pack liquid food have higher technical requirements. Aseptic, hygienic and safe are the basic requirements of liquid food packaging machines. .

1. Before starting each time, check and observe whether there are any abnormalities around the machine.

2. When the machine is in operation, it is strictly forbidden to approach or touch the moving parts with your body, hands and head.

3. When the machine is in operation, it is strictly forbidden to extend hands and tools into the sealing knife seat.

4. It is strictly forbidden to switch the operation buttons frequently during normal operation of the machine, and it is strictly forbidden to frequently change the parameter setting value at will.

5. It is strictly forbidden to run at super high speed for a long time.

6. It is forbidden for two people to operate the various switch buttons and mechanisms of the machine at the same time; the power should be turned off during maintenance and maintenance; when multiple people are debugging and repairing the machine at the same time, they must communicate with each other and signal to prevent accidents caused by incoordination.

7. When checking and repairing electrical control circuits, it is strictly forbidden to work with electricity! Be sure to cut off the power! It must be done by electrical professionals, and the machine is automatically locked by the program and cannot be changed without authorization.

8. When the operator is unable to stay awake due to drinking or fatigue, operation, debugging or maintenance is strictly prohibited; other untrained or unqualified personnel are not allowed to operate the machine.

Warning: For the safety of you, others and the equipment, please operate according to the above requirements.

Operating procedures:

1. Before turning on the automatic liquid packaging machine, check whether there is any abnormality around the machine.

2. When the machine is running, it is strictly forbidden to approach or touch the running parts with your body, hands and head.

3. When the machine is running, it is strictly forbidden to extend hands and tools into the sealing knife seat.

4. When the machine is working normally, it is strictly forbidden to switch the operation process button frequently, and it is strictly forbidden to change the parameter preset value frequently.

5. Fast and long-term operation is strictly prohibited.

6. It is strictly forbidden for two people to operate the various switch buttons and mechanisms of the process machine at the same time; the power should be cut off during maintenance and maintenance; when multiple people are debugging and repairing the machine at the same time, pay special attention to communication and signal to avoid accidents caused by incoordination .

7. When checking and repairing electrical control circuits, it is strictly forbidden to work with electricity! Be sure to disconnect the power supply! It must be carried out by electrical professionals. The equipment is automatically locked by the program and cannot be modified privately.

8. When the operating process personnel are unable to clear their minds due to drinking or fatigue, it is strictly forbidden to perform the operating process, debugging or maintenance work; other personnel without training or qualifications are not allowed to operate the process machine.


Suitable for packaging machines of various liquids such as detergent and sauce products, rice wine, soy sauce, chili oil, jam, fruit juice, beverages, white wine, water, instant noodle seasoning water, cold skin seasoning water, vinegar, shampoo, tomato sauce, milk , Coconut milk and other products with good liquidity.


The bag type of the packaging machine in this video is a back-seal bag type. The picture below is a physical display.

Product name

 SK-L420-Y Gel liquid packing machine

Air consumption consumption

0.65mpa,2.5m3/min.

Packaging film width

420mm

Bag length

80-300mm

Bag width

80-200 mm

Max outer diameter of coil

Max.360mm

Packing speed

10-35 bags/min

Packaging film thickness

0.04-0.08mm

Power Specifications

220V.50/60Hz.3 Kw

Dimensions

(L)1450*(W)1000*(H)1600mm

Net weight

450kg

Gross Weight

500kg

Packaging materials

Composite film

What is the cause of the inaccurate metering of the liquid pump of the vertical automatic liquid packaging machine?

 In daily life, you can see bagged liquid products everywhere, such as bagged soy sauce, bagged red oil, bagged chili sauce, bagged ketchup, bagged rice wine, bagged water, bagged milk, etc. Many are packaged in bags. Packed in bags for easy carrying.

For these bagged liquid products, we generally use a vertical automatic liquid packaging machine for packaging, and use a vertical automatic liquid packaging machine to replace manual packaging. This ensures that the liquid products are clean and hygienic during the packaging process and reduces labor costs. And the cost can also improve the efficiency of packaging and shorten the delivery cycle.

The measurement link of the vertical automatic liquid packaging machine is to use the liquid pump for measurement. When adjusting the weight of the vertical automatic liquid packaging machine, we need to adjust the liquid pump to achieve the corresponding effect, but if the liquid pump is not accurate , What caused it?

1. Whether the model of the liquid pump and metering pump matches the metering requirements;

2. Measure whether the cylinder formation is in place;

3. Whether a check valve is installed at the inlet of liquid materials with good fluidity;

4. Whether the action of the unloading cylinder matches the action of the metering cylinder;

5. Whether the discharge port of the liquid pump is blocked quickly and whether there is material leakage;
