 Large capacity liquid packing machine for pure liquid with liquid pump


Tel: +86-757-81859859

Phone: +86-18902413057

Email: sales001@songkepack.com


In the video above, we are packaging 5 kg of liquid water. We use the SK-L720 packaging machine with an electronic liquid pump for liquid measurement and bag manufacturing, liquid filling, production date printing, product sealing, and cutting, and all the processes of output. . The length of the bag of 5 kg of liquid water packaged in the video is 450mm. The packing speed of 5 kg is about 8-10 bags per minute. The consumables for this vertical packaging machine are film rolls. If you also need to pack liquid products, you can inform the customer service of the materials you need to pack, the weight of the packaging, and the size of the bag. The business can do it for you according to your products and your needs. Develop your own packaging plan.

Liquid packing machine's component:

1) Mian packing machine 2)  Liquid pump

Some detailed pictures of the Liquid packing machine


Storage bucket device


Collar type bag former


Film unwinding device


Date Printer device


 Vertical  sealing device


The horizontal sealing device


Feeding device


Electric box

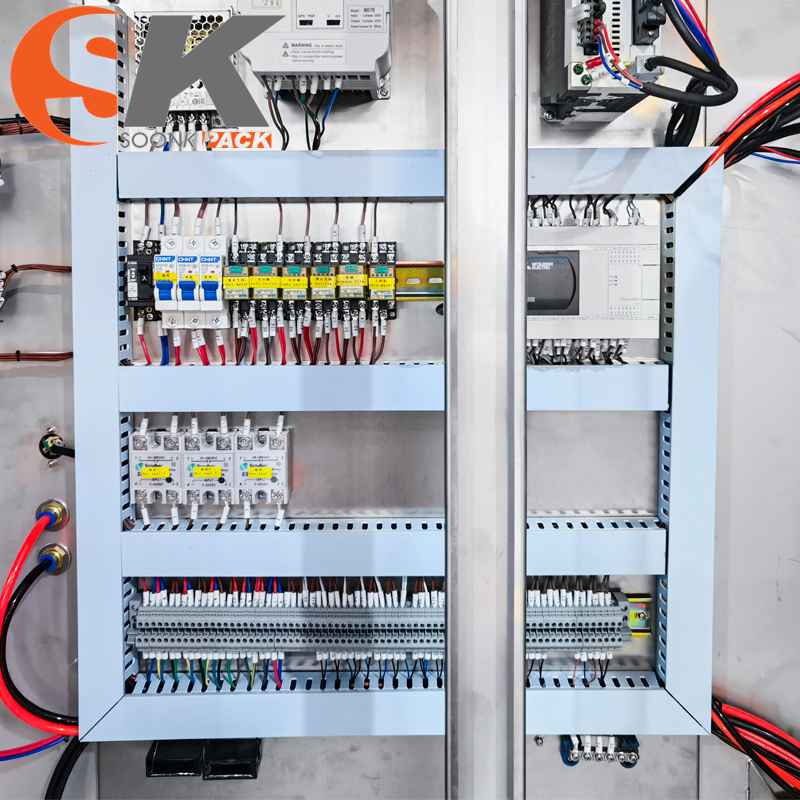

1. Electric box:

Neatly installed lines, clear lines, and reasonable layout. Choose imported brand configuration, long service life, not easy to cause failure.

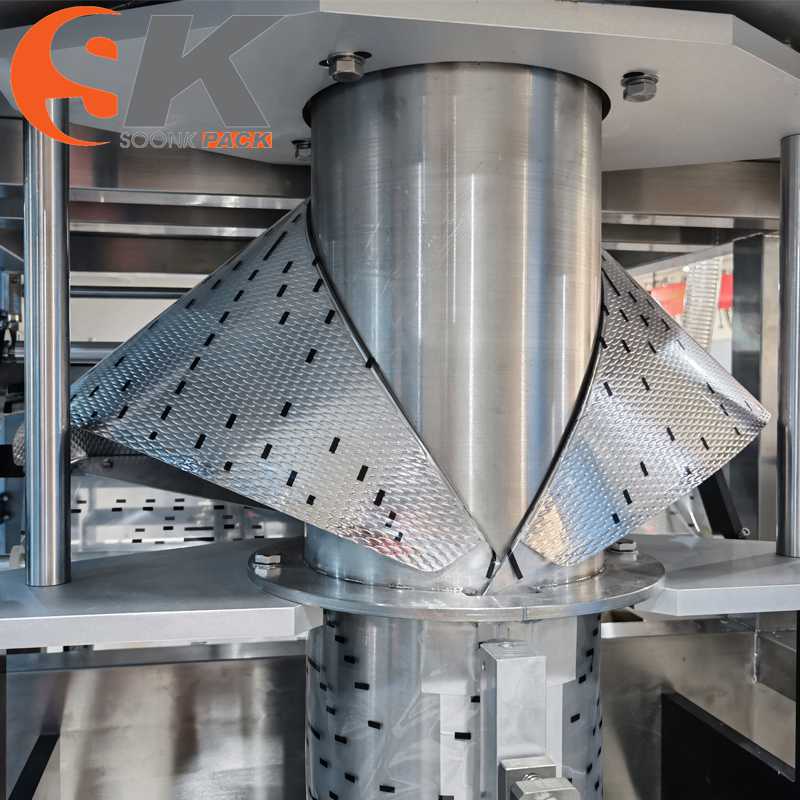

2. Collar type bag former:

This machine adopts a specific lapel bag former, making the film stretch run stably and improving efficiency; it is not easy to run the film and the forming is more beautiful.

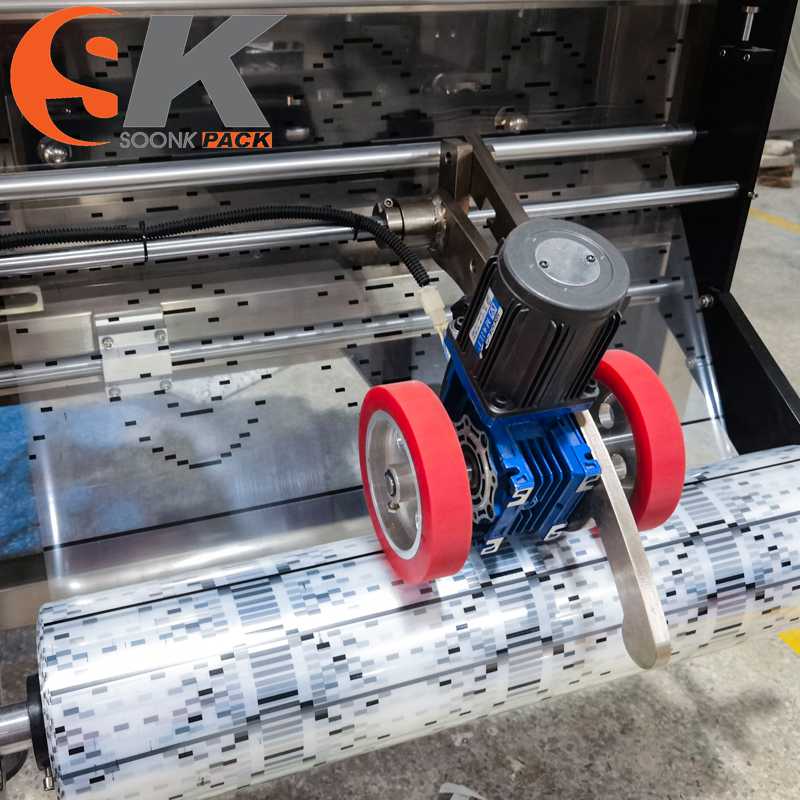

3. Film unwinding device:

Adopting an external film feeding mechanism, it is more convenient to replace the packaging. The film unwinding device has a brake function to avoid wasting packaging film.

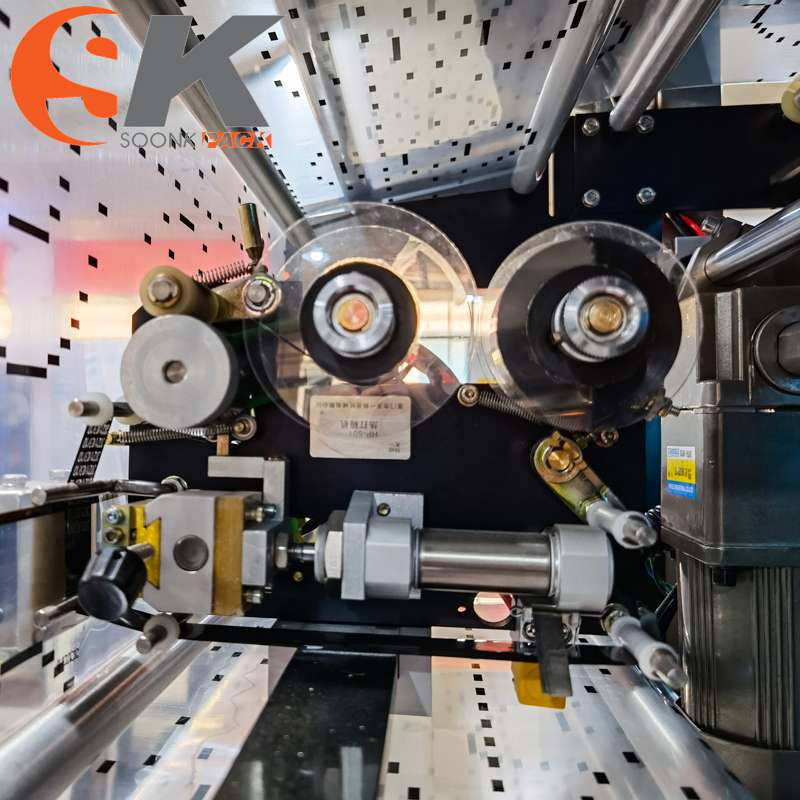

4. Date Printer device:

 The packaging machine is equipped with a coding machine device, which automatically prints the production date and can print three lines. The font size is 2*4mm.

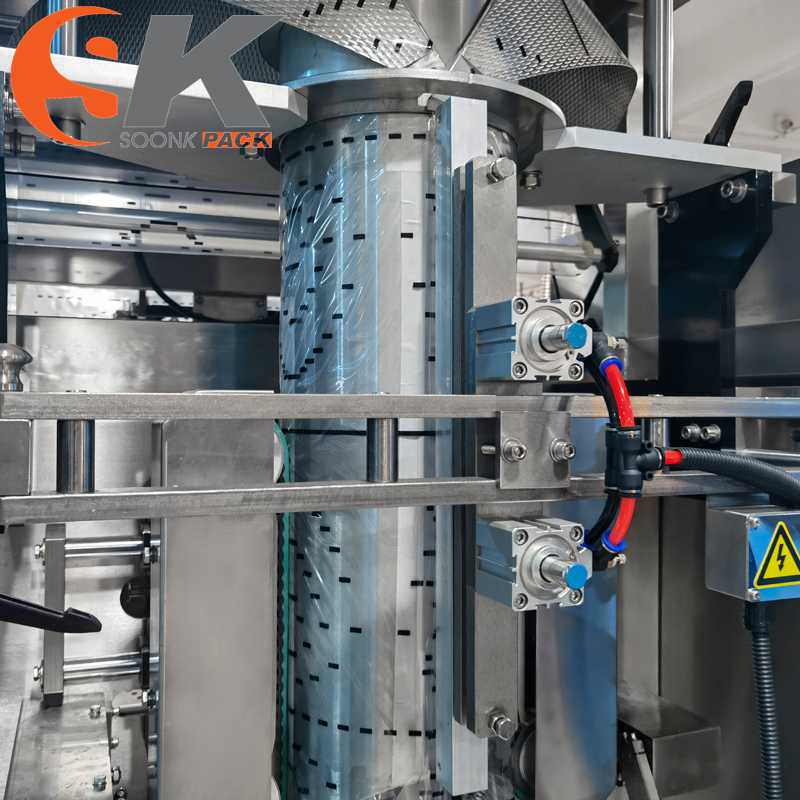

5. Vertical  sealing device:

The vertical sealing device has a compact, firm structure, reasonable design, and simple. Using the principle of clamping and sealing, the film can be heat-sealed instantaneously, mainly for composite film sealing design, and PE film sealing design can also be used to make the sealing line seal neatly.

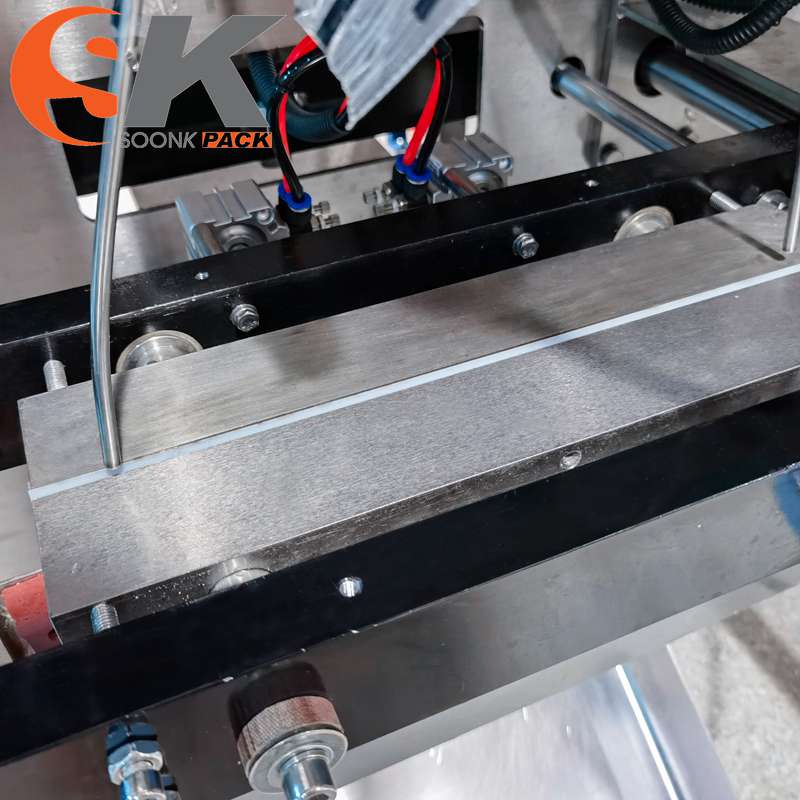

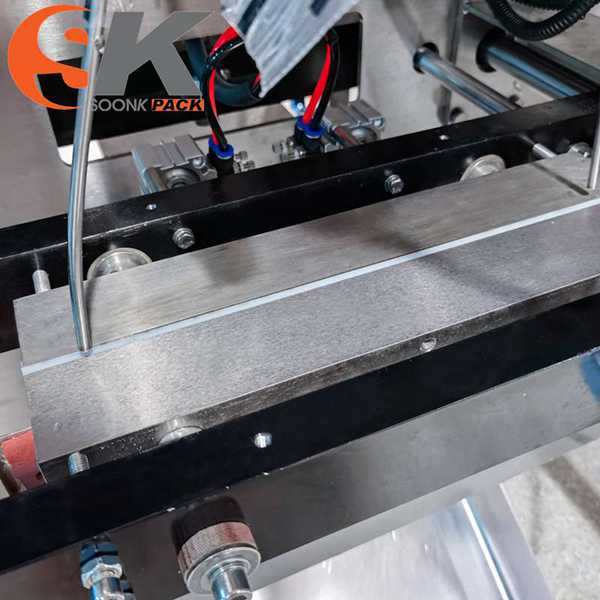

6. The horizontal sealing device :

 It is equipped with a stainless steel panel to prevent burns caused by contact with the horizontal sealing rod. The equipment adopts a back sealing method.

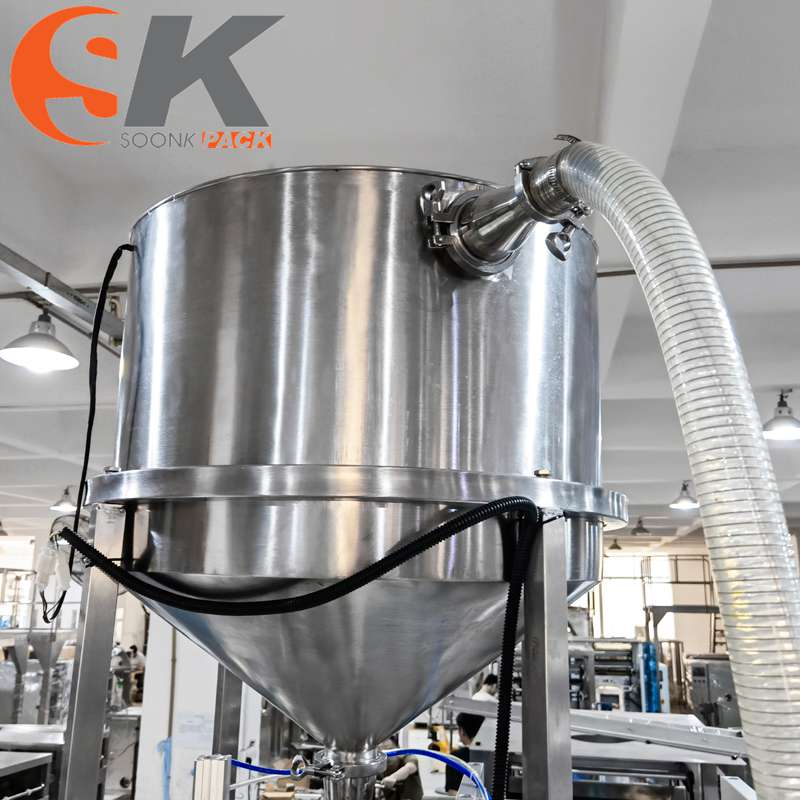

7. Storage bucket device:

Made of high-quality stainless steel, large volumes can store a large number of materials.

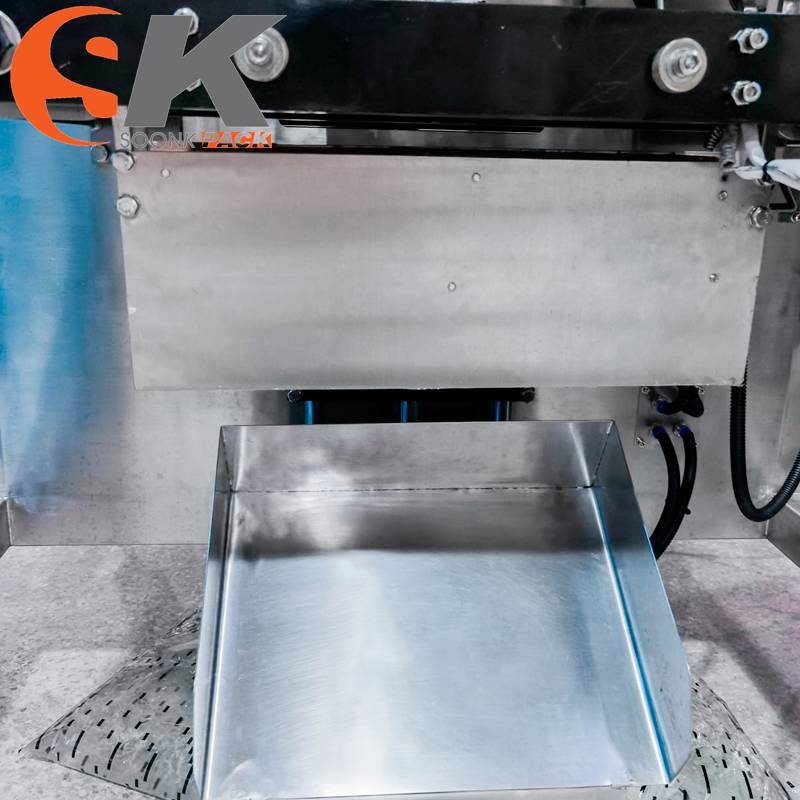

8. Feeding device:

It is suitable for heavy-weight products to avoid breaking through the bag and causing material leakage.

Introduction of liquid quantitative packaging machine:

It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and can be configured to print batch numbers and other functions according to customer requirements. Adopt an advanced microcomputer controller, drive stepping motor to control bag length, stable performance, convenient adjustment, and accurate detection.

The performance characteristics of Large capacity liquid packing machine for pure liquid with liquid pump

 1. The main machine of packaging machine is the SK-L720 vertical packaging machine, made of stainless steel.

2. It adopts imported servo motor control to ensure the smooth delivery of packaging film and the smoothness of the bag;

3. Imported brand air cylinders are used to ensure the good sealing performance of the bag and clear sealing lines, prevent air leakage of the packaging bag, and reduce the waste rate;

4. Adopt PLC control, imported driver, equipped with imported brand touch screen, man-machine interface, high degree of automation, simple operation procedure, high sensitivity of touch screen;

5. Multi-language operating system selection;

6. The liquid pump is also made of high-quality stainless steel, corrosion-resistant, acid-base resistant, and in line with food hygiene and safety;

7. The pipe connection of the liquid pump adopts snap-in type, quick coupling, easy to clean and disassemble, pneumatic control, plug, and play, convenient and quick, simple operation

Precautions:

Due to the rich variety of liquid products, there are also many types and forms of liquid product packaging machines. Among them, liquid packaging machines used to pack liquid food have higher technical requirements. Aseptic, hygienic, and safe are the basic requirements of liquid food packaging machines. .



1. Before starting each time, check and observe whether there are any abnormalities around the machine.

2. When the machine is in operation, it is strictly forbidden to approach or touch the moving parts with your body, hands, and head.

3. When the machine is in operation, it is strictly forbidden to extend hands and tools into the sealing knife seat.

4. It is strictly forbidden to switch the operation buttons frequently during the normal operation of the machine, and it is strictly forbidden to frequently change the parameter setting value at will.

5. It is strictly forbidden to run at super high speed for a long time.

6. It is forbidden for two people to operate the various switch buttons and mechanisms of the machine at the same time; the power should be turned off during maintenance and maintenance; when multiple people are debugging and repairing the machine at the same time, they must communicate with each other and signal to prevent accidents caused by incoordination.

7. When checking and repairing electrical control circuits, it is strictly forbidden to work with electricity! Be sure to cut off the power! It must be done by electrical professionals, and the machine is automatically locked by the program and cannot be changed without authorization.

8. When the operator is unable to stay awake due to drinking or fatigue, operation, debugging or maintenance is strictly prohibited; other untrained or unqualified personnel are not allowed to operate the machine.

Warning: For your safety, others, and equipment, please operate according to the above requirements.

Operating procedures:

1. Before turning on the automatic liquid packaging machine, check whether there is any abnormality around the machine.

2. When the machine is running, it is strictly forbidden to approach or touch the running parts with your body, hands, and head.

3. When the machine is running, it is strictly forbidden to extend hands and tools into the sealing knife seat.

4. When the machine is working normally, it is strictly forbidden to switch the operation process button frequently, and it is strictly forbidden to change the parameter preset value frequently.

5. Fast and long-term operation is strictly prohibited.

6. It is strictly forbidden for two people to operate the various switch buttons and mechanisms of the process machine at the same time; the power should be cut off during maintenance and maintenance; when multiple people are debugging and repairing the machine at the same time, pay special attention to communication and signal to avoid accidents caused by incoordination.

7. When checking and repairing electrical control circuits, it is strictly forbidden to work with electricity! Be sure to disconnect the power supply! It must be carried out by electrical professionals. The equipment is automatically locked by the program and cannot be modified privately.

8. When the operating process personnel is unable to clear their minds due to drinking or fatigue, it is strictly forbidden to perform the operating process, debugging, or maintenance work; other personnel without training or qualifications are not allowed to operate the process machine.


The liquid packaging machine is suitable for various liquid and sauce products, non-drawing materials, such as detergent, butter, rice wine, egg white, purified water, fruit juice, beverage, tomato sauce, peanut butter, jam, chili oil, chili sauce, etc.


The vertical sauce packaging machine can choose back seal, three-side seal, four-side seal, gusseted bag and other bag types according to actual needs. For the size of the packaging bag of this packaging machine within 50-200*30-150mm, you can choose this packaging machine, but you need to pay attention to the fullness of the material filling can not exceed 80% of the bag. Otherwise, there will be material pinching or air leakage.

Product name

 SK-L720Y Large capacity liquid packing machine for pure liquid with liquid pump

Air consumption consumption

0.65mpa,2.5m3/min.6kg/cm2

Packaging film width

320mm

Bag length

100-500mm

Bag width

180-350mm

Max outer diameter of coil

Max.360mm

Packing speed

5-40 bags/min

Packaging film thickness

0.04-0.08mm

Power Specifications

220V.50/60Hz.3Kw

Dimensions

(L)1800*(W)1310*(H)2050mm

Packaging materials

Composite film

What is the cause of the inaccurate metering of the liquid pump of the vertical automatic liquid packaging machine?



 In daily life, you can see bagged liquid products everywhere, such as bagged soy sauce, bagged red oil, bagged chili sauce, bagged ketchup, bagged rice wine, bagged water, bagged milk, etc. Many are packaged in bags. Packed in bags for easy carrying.



For these bagged liquid products, we generally use a vertical automatic liquid packaging machine for packaging and use a vertical automatic liquid packaging machine to replace manual packaging. This ensures that the liquid products are clean and hygienic during the packaging process and reduces labor costs. And the cost can also improve the efficiency of packaging and shorten the delivery cycle.



The measurement link of the vertical automatic liquid packaging machine is to use the liquid pump for measurement. When adjusting the weight of the vertical automatic liquid packaging machine, we need to adjust the liquid pump to achieve the corresponding effect, but if the liquid pump is not accurate, What caused it?



1. Whether the model of the liquid pump and metering pump matches the metering requirements;



2. Measure whether the cylinder formation is in place;



3. Whether a check valve is installed at the inlet of liquid materials with good fluidity;



4. Whether the action of the unloading cylinder matches the action of the metering cylinder;



5. Whether the discharge port of the liquid pump is blocked quickly and whether there is material leakage;



6. Check whether the function switch in the screen is normally turned on;



7. PLC or electronic board blanking signal is normal;



8.  Check whether the blanking meter is normal;



8. Whether the solenoid valve is damaged;



9.   Whether the air source is normal;



10. Whether the cylinder is damaged;



11. Whether the limit switch is normal;



12. Whether the piston and pump body are stuck
