Low cost 5 kg ice cube packaging machine


The automatic ice cube packaging machine packs 5 kilograms of ice cube products. This packaging machine uses the SK-L720 host to match the feeding machine and weighing and measuring device, and the finished product conveyor is used to pack 5 kg of ice products.

Machine Component

1) Main packing machine,   2)   Two heads scew weigher  3 ) Finished bag conveyor

Some detaied pcitures of Liquid packing machine


Bag former device


Vertical sealing device


Horizontal sealing device


Computer screen control device


Electric box device


Storage bucket device

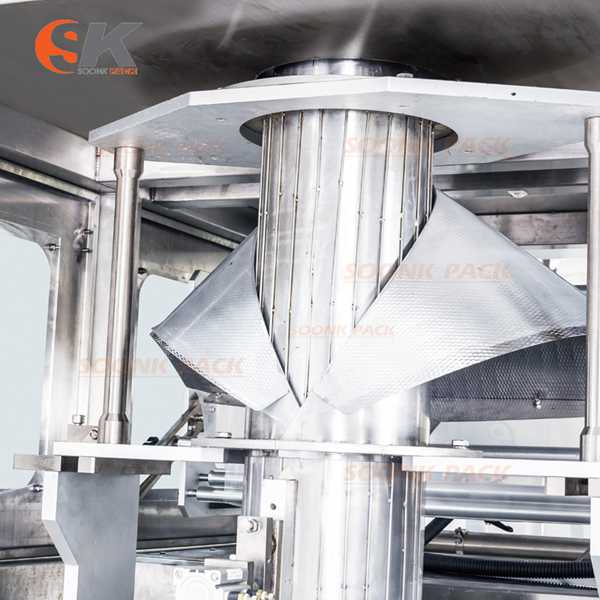

Bag former device : The bag former is specially designed to pack ice cubes, which is different from ordinary bag formers. The former is mainly designed for the problems of moisture and slippage encountered in the ice cubes packaging process, so that the film can run smoothly and seal.

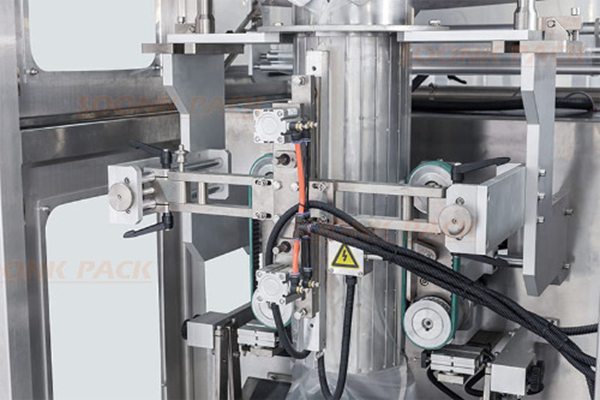

Vertical sealing device: The vertical sealing device has a compact structure and uses the principle of pasting to make the film instantly heat-sealed. It is mainly designed for the special sealing of PE film material. Let the sealing lines seal neatly.

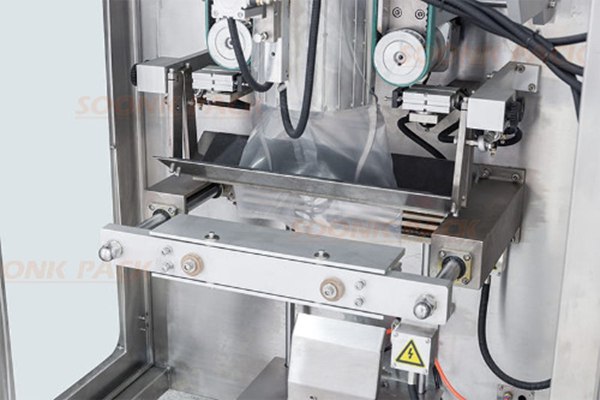

Horizontal sealing device: The horizontal sealing device is unique in design and is also specially designed for PE film material sealing. At the same time, the horizontal sealing part is equipped with an advance bag clamping device, which can prevent the bag from being broken due to excessive speed and heavy weight during the material blanking process. At the same time, it cooperates with the supporting device to hold the heavier bag to prevent the bag from being damaged.

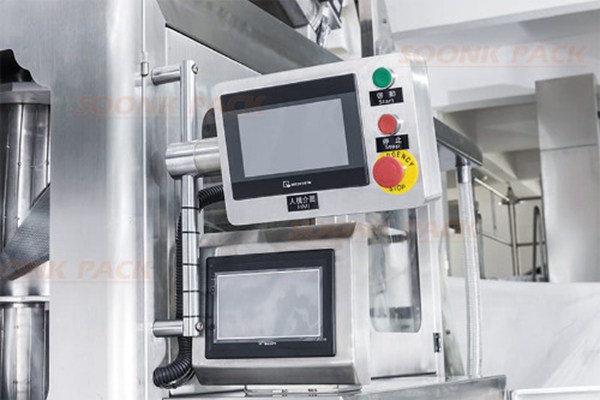

Computer screen control device : The electronic scale and the packaging host are independent computer touch screen control systems, using Chinese and English languages, the program is easy to update, the operation program is simple and easy to understand, intuitive and efficient.

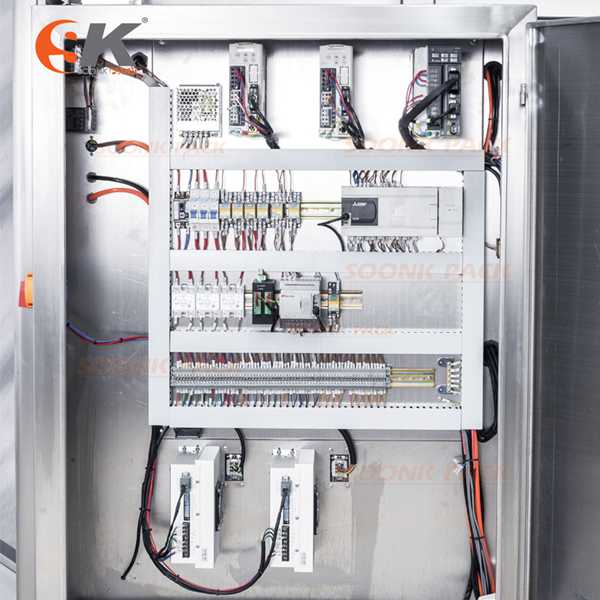

Electric box device : neatly installed lines, clear lines and reasonable layout. Choose imported brand configuration, long service life, not easy to cause failure.

Storage bucket device:made of high-quality 304stainless steel, large volume, can be stored Store a lot of materials.

Introduction of ice pack quantitative packaging machine

It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and can be configured to print batch numbers and other functions according to customer requirements. Adopt advanced microcomputer controller, drive stepping motor to control bag length, stable performance, convenient adjustment and accurate detection.



Main Features:

1. Multi-head combined weigher, improve metering speed and accuracy.

2. 7inch touch screen, easy operation and multiple language for choice.

3. Imported PLC system, machine performance is stable and easy for parameters adjusting.

4. With a memory function for storage ten sets of parameters. Easy to change packing product.

5. Separate PID temperature controller, suitable for various packing materials.

6. Multi-union roll film pulling system make film running more smooth.

7. Adopt double servo film-dragging structure, enable stable bag forming for perfect bag shape.

8. Sophisticated sealing framework achieve the consistency of bag sealing and cutting



Performance characteristics:

1. The ice cube packaging machine is made of cold-proof and rust-resistant stainless steel, which has good durability, reasonable design of the whole machine, simple operation and convenient maintenance

2. It adopts imported brand PLC control, man-machine interface touch screen control, sensitive touch, supports multiple languages, has data storage function, and can be switched freely

3. The ice cube packaging machine has an automatic correction function, the packaging film deviation occurs, and the system can automatically correct it, which greatly improves efficiency and saves packaging film, providing the reliability and intelligence of the entire ice cube packaging machine;

4. The packaging machine is equipped with a variety of automatic alarm functions, which will automatically alarm when there is a failure, so as to greatly reduce the loss;

5. It adopts double servo motors and double film pulling system to ensure that the ice cube packaging bag is conveyed smoothly and the bag is smooth.

6. Using an external film release mechanism, it is simple and convenient to replace the packaging film.

7. The self-developed two-head screw scale is used for weighing and measurement, with high measurement accuracy and fast speed.



Advantage :

Our ice packing machine sells well in southeast Asia, Africa, Middle East, etc.Machine running stable, and technical team provide technical support and after-sales service.Ice packaging machine, the technology has been mature, has been recognized by the customer.

Operating procedures:

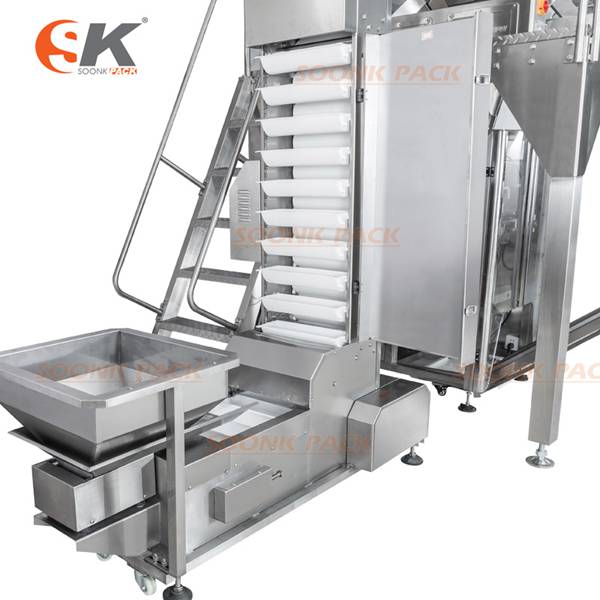

The feeder vibrates and feeds the materials to the screw type electronic scale for automatic weighing, and then fills the materials with the target weight into the packaging machine, and then the finished product conveyor outputs the packed bags. It can realize automatic lifting, measuring, forming and sealing bags, date coding, and output a series of automatic packaging processes.


Suitable for packaging all kinds of rules, granular, block product,professional packaging block ice, tube ice, crushed ice, ice particles, ice cube.

Bag type


Product name

 SK-L720D2T 5 kg ice cube packaging machine

Air consumption consumption

0.65mpa,2.5m3/min.

Packaging film width

720mm

Bag length

100-500mm

Bag width

180-350 mm

Max outer diameter of coil

Max.360mm

Packing speed

5-55 bags/min

Packaging film thickness

0.04-0.08mm

Power Specifications

220V.50/60Hz.3 Kw

Dimensions

(L)1800*(W)1310*(H)2050mm

Net weight

700kg

Gross Weight

750kg

Packaging materials

PE film

Ice cube packaging machine packs 5 kg of ice cubes easily and without pressure



For ice cube products, we know that they are produced by ice cube machines. The ice cube products produced by ice cube machines are manually packaged by hand. For ice cube packaging, because the temperature of ice cubes is relatively low, it is wet and cold, and the contact time is relatively low. The longer it is, the greater the resistance to ice. The use of manual packaging, slow packaging speed and low accuracy, slow efficiency, and lead to problems such as overdue delivery of orders or loss of orders.



 Many bosses who produce ice cubes know that manual packaging is slow and low precision, but they don't know how to solve this problem. However, the birth of ice cube packaging machines has made ice cube packaging a major breakthrough. Said, the difficulty of packaging ice cubes is that the ice cubes will melt, and the material that needs to be used needs to be cold-resistant and rust-resistant, and the ice cubes will become denser and denser after vibration, and will not flow easily and stick to it. It is difficult for manufacturers with ice cube packaging machine experience to solve such problems.



 But for the Soonk packaging machine, the Soonk ice cube packaging machine packs ice cubes easily and without pressure. Soonk packaging machinery has specially designed and developed a metering device that has been thought of for packaging ice cubes and ice particles. After measurement, when filling , it is easy to push, and it is not easy to cause problems such as blockage and accumulation. Generally, PE film is used for packaging ice cubes, and Soonk packaging machinery has also made changes to the packaging of PE film rolls, so that when ice cubes are packaged with PE film, it is easy and simple without blocking the material, etc.
