Soonk Pack Meat Tomato Sauce Keptcup Packaging Machine


The meat tomato sauce material is packed in this video. The meat sauce material belongs to the product containing meat particles. For the sauce product containing particles, in order to obtain a uniform packaging during the packaging process, we will recommend the use of storage with stirring function. The hopper is a storage hopper with a mixing function. During the packaging process, the materials will be continuously stirred, so that the materials can be evenly packaged. Of course, the price with stirring needs to be a bit more expensive than the price without stirring. If you need to pack very granular sauces, or thicker sauces, you can choose to use this vertical sauce packaging machine for packaging.

Tomato sauce packing machine 's companent:

1) Mian packing machine 2) Liquid pump

Some detailed pictures of Liquid  packing machine:


Large U type storage hopper


Liquid metering device


Color mark photo electric eye device


Date Printer device


Touch screen device, temperature control meter


Electric box


Vertical  sealing device


The horizontal sealing device

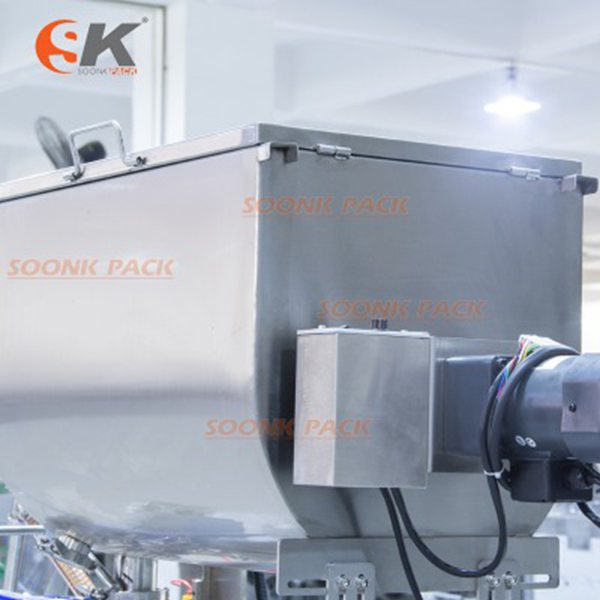

1.Large U type storage hopper:

Equipped with a large U type storage hopper store liquid sauce materials,with a stirring function ,the motor drives the stirring ,so that the particles with the sauce materials can be stirred, so that the particles and the sauce can be mixed evenly before packaging .

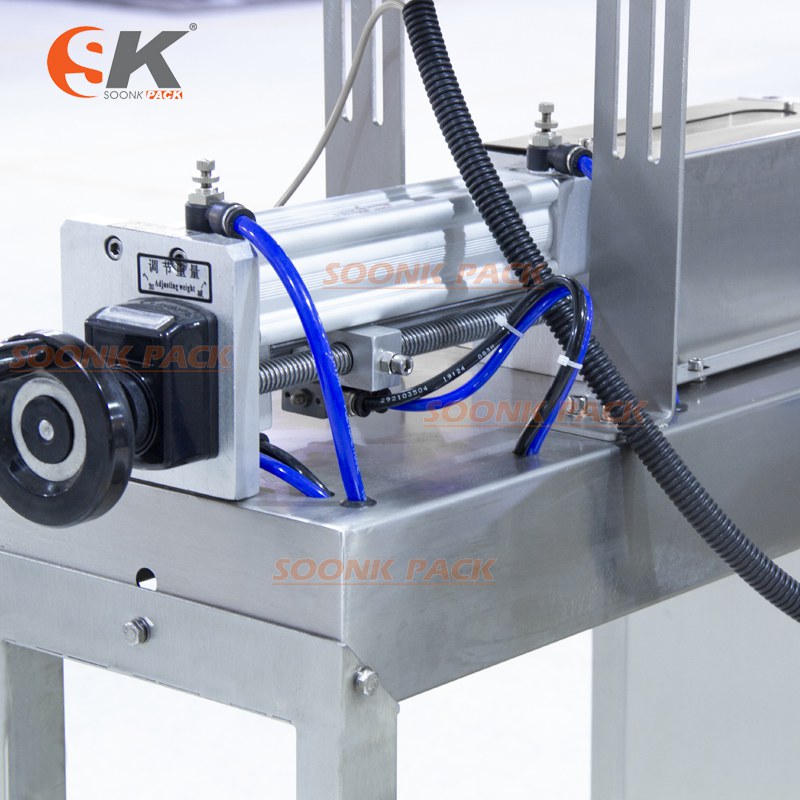

2. Liquid metering device:

The pipe connections are all made of snap-fit ,quick coupling ,easy to clean and disassemble ; pneumatic control,plug in and use immediately.convenient and quick ,simple operation.The device is made of high-qaulity stainless steel ,corrosion resistant and acid-alkai。

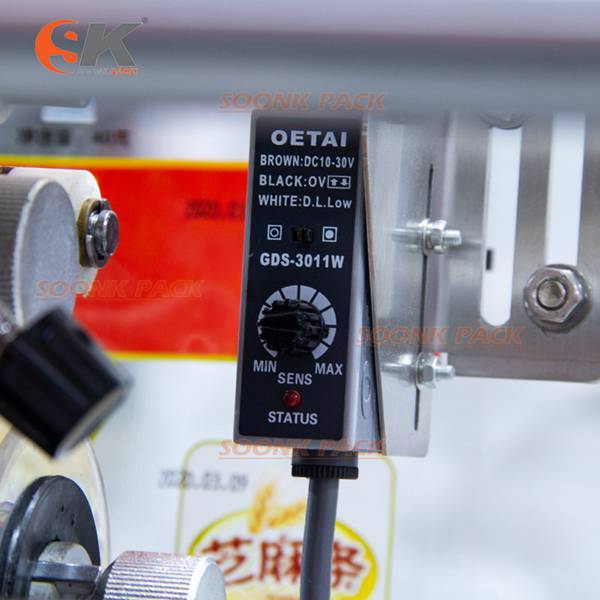

3. Color mark photo electric eye device:

The packaging machine is equipped with a color mark photo electric eye device, which can accurately detect the cutting length of the bag, and obtain a complete trademark pattern to ensure the integrity of the package

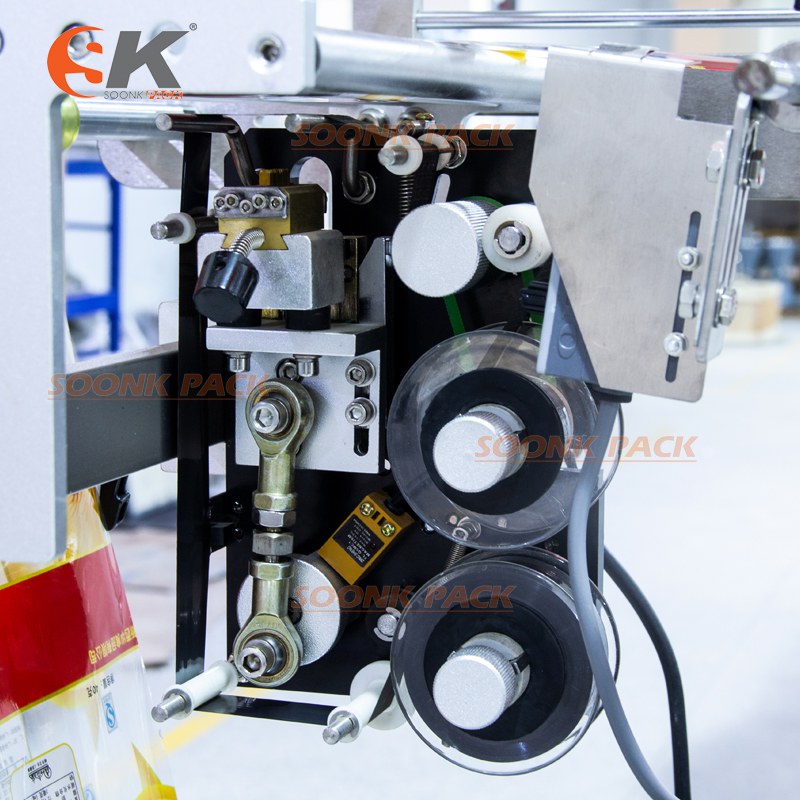

4. Date Printer device:

The packaging machine is equipped with a coding machine device, which automatically prints the production date and can print three lines. The font size is: 2*4mm.

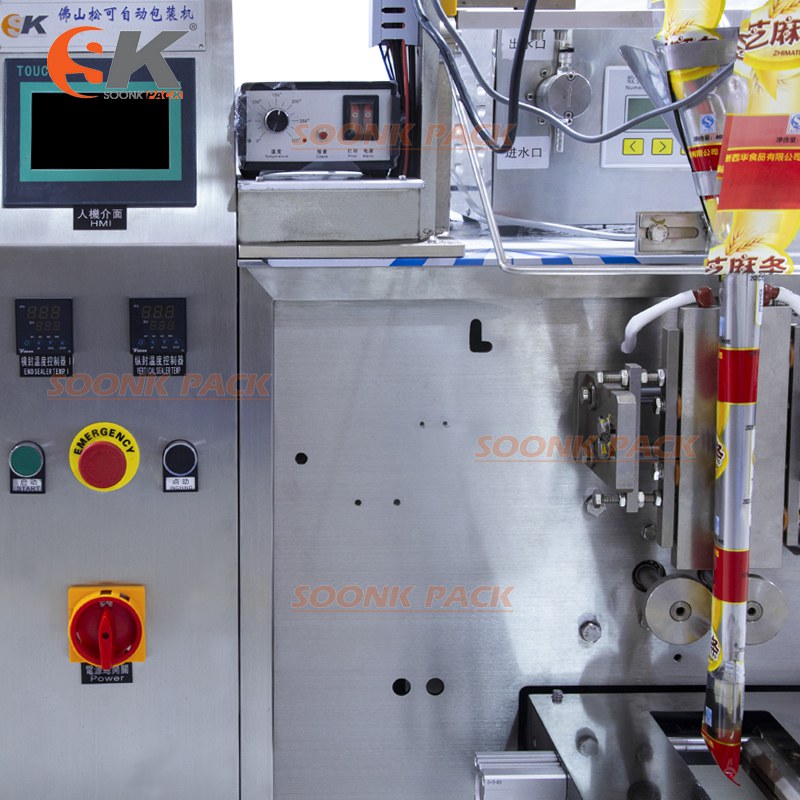

5. Touch screen device, temperature control meter:

Use the man-machine interface touch screen, the touch screen is sensitive, and the relevant values can be adjusted arbitrarily, which is convenient and quick; the horizontal seal and the vertical seal use an independent temperature control meter, which can individually control the relevant temperature.

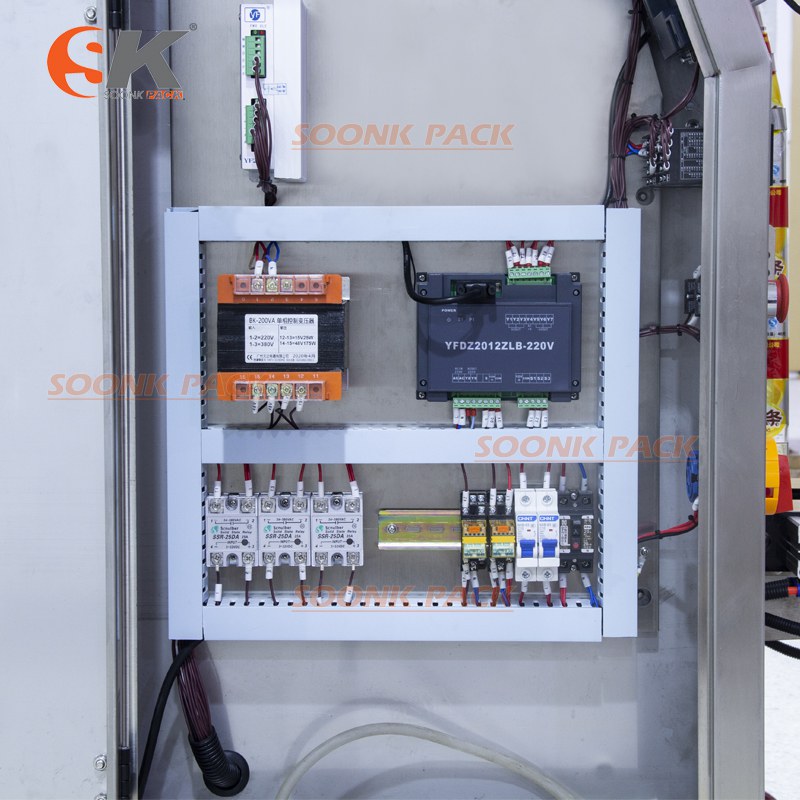

6. Electric box:

Neatly installed lines, clear lines and reasonable layout. Choose imported brand configuration, long service life, not easy to cause failure.

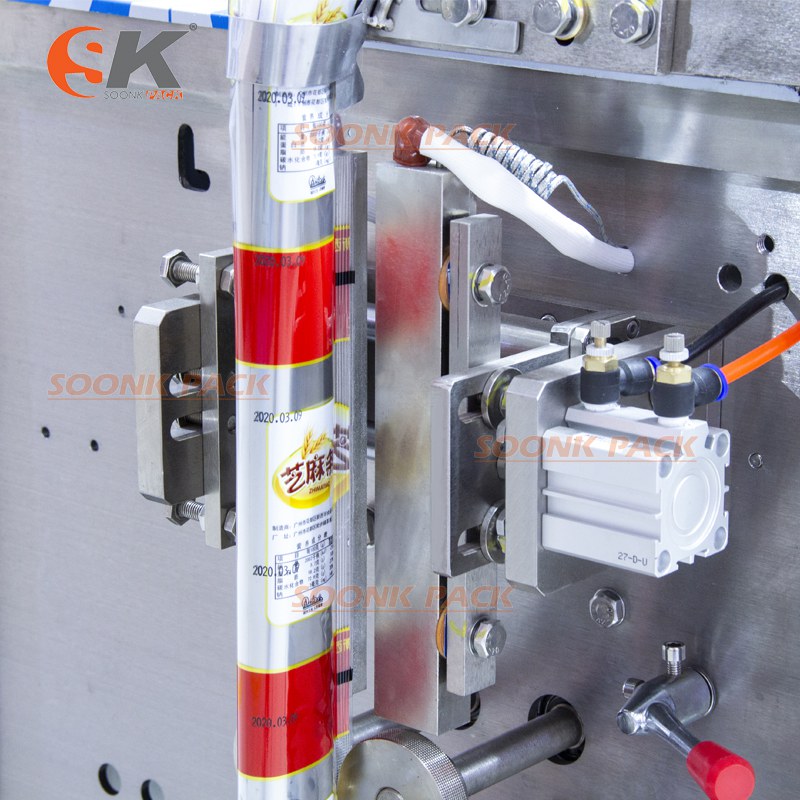

7. Vertical  sealing device:

The vertical sealing device has a compact, firm structure, reasonable design and simple. Using the principle of clamping and sealing, the film can be heat-sealed instantaneously, mainly for composite film sealing design, and PE film sealing design can also be used to make the sealing line seal neatly.

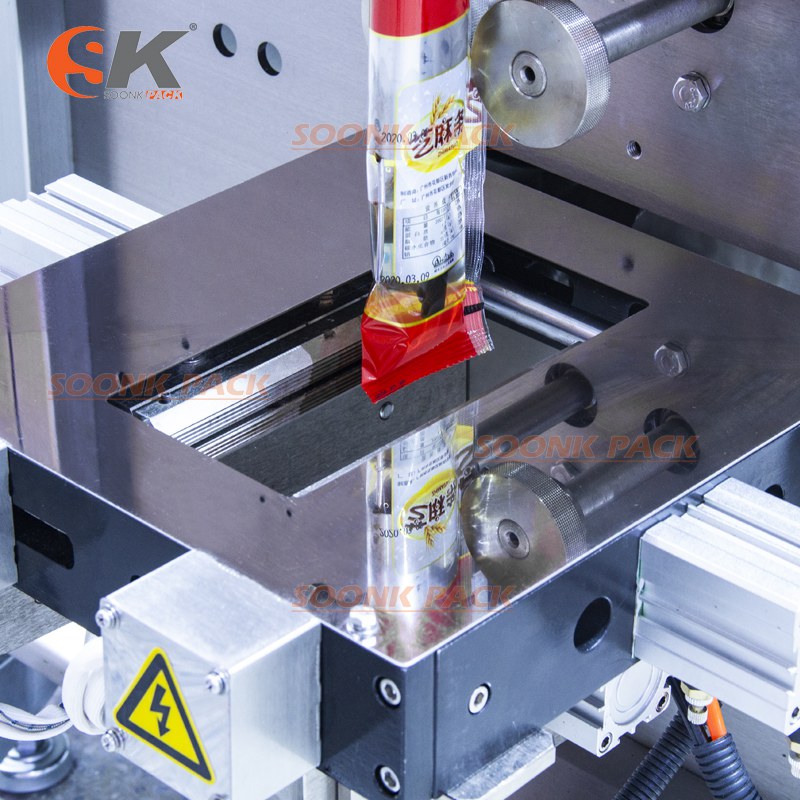

8. The horizontal sealing device :

 It is equipped with a stainless steel panel to prevent burns caused by contact with the horizontal sealing rod. The equipment adopts a back sealing method.

Introduction of liquid quantitative packaging machine:

It can automatically complete bag making, metering, blanking, sealing, slitting, counting, and can be configured to print batch numbers and other functions according to customer requirements. Adopt advanced microcomputer controller, drive stepping motor to control bag length, stable performance, convenient adjustment and accurate detection.

The performance characteristics of vertical automatic packaging machinery and equipment for tomato sauce and meat sauce:

1) The vertical meat sauce and ketchup packaging machine uses a large U-shaped storage hopper to store materials. The storage hopper is equipped with a stirring function and uses a motor to control the stirring, so that the materials can be evenly packaged after stirring;



2) Pneumatic pumps are used for metering. The pipe connections of pneumatic pumps are all snap-fit, quick connectors, easy to clean and disassemble; pneumatic pumps use pneumatic control, plug and play, convenient and quick, simple operation, accurate measurement of pneumatic pump;



3) The entire vertical automatic packaging machine for meat sauce and ketchup is made of high-quality stainless steel, which is corrosion-resistant and acid-base resistant, and meets food hygiene and safety;



4) The packaging machine contains a color code tracking photoelectric eye, which effectively controls the positioning length of the packaging film, and ensures that the cut-out bag is in good position and complete;



5) Equipped with a production date coding machine, which can quickly print the production date and production date of the product; the coding machine can print three lines with a size of 2*4mm;



6) The horizontal and vertical seals adopt independent temperature control meters, which can control the temperature of the horizontal and vertical seals respectively, making the sealing of the horizontal and vertical seals more perfect;



7) Use stepping motor to pull film, reliable, stable performance and low noise.



8) The packaging machine adopts a three-side sealing method, and the sealing method of back sealing or four-side sealing can be selected according to actual requirements;



9) The packaging machine can automatically complete all the processes of material measurement, bag making and filling, production date printing, product sealing and cutting and output can be completed at one time.



Precautions:



Due to the rich variety of liquid products, there are also many types and forms of liquid product packaging machines. Among them, liquid packaging machines used to pack liquid food have higher technical requirements. Aseptic, hygienic and safe are the basic requirements of liquid food packaging machines. .



1. Before starting each time, check and observe whether there are any abnormalities around the machine.



2. When the machine is in operation, it is strictly forbidden to approach or touch the moving parts with your body, hands and head.



3. When the machine is in operation, it is strictly forbidden to extend hands and tools into the sealing knife seat.



4. It is strictly forbidden to switch the operation buttons frequently during normal operation of the machine, and it is strictly forbidden to frequently change the parameter setting value at will.



5. It is strictly forbidden to run at super high speed for a long time.



6. It is forbidden for two people to operate the various switch buttons and mechanisms of the machine at the same time; the power should be turned off during maintenance and maintenance; when multiple people are debugging and repairing the machine at the same time, they must communicate with each other and signal to prevent accidents caused by incoordination.



7. When checking and repairing electrical control circuits, it is strictly forbidden to work with electricity! Be sure to cut off the power! It must be done by electrical professionals, and the machine is automatically locked by the program and cannot be changed without authorization.



8. When the operator is unable to stay awake due to drinking or fatigue, operation, debugging or maintenance is strictly prohibited; other untrained or unqualified personnel are not allowed to operate the machine.



Warning: For the safety of you, others and the equipment, please operate according to the above requirements.

Operating procedures:

1. Before turning on the automatic liquid packaging machine, check whether there is any abnormality around the machine.

2. When the machine is running, it is strictly forbidden to approach or touch the running parts with your body, hands and head.

3. When the machine is running, it is strictly forbidden to extend hands and tools into the sealing knife seat.

4. When the machine is working normally, it is strictly forbidden to switch the operation process button frequently, and it is strictly forbidden to change the parameter preset value frequently.

5. Fast and long-term operation is strictly prohibited.

6. It is strictly forbidden for two people to operate the various switch buttons and mechanisms of the process machine at the same time; the power should be cut off during maintenance and maintenance; when multiple people are debugging and repairing the machine at the same time, pay special attention to communication and signal to avoid accidents caused by incoordination .

7. When checking and repairing electrical control circuits, it is strictly forbidden to work with electricity! Be sure to disconnect the power supply! It must be carried out by electrical professionals. The equipment is automatically locked by the program and cannot be modified privately.

8. When the operating process personnel are unable to clear their minds due to drinking or fatigue, it is strictly forbidden to perform the operating process, debugging or maintenance work; other personnel without training or qualifications are not allowed to operate the process machine.


The vertical sauce automatic packaging machine is suitable for packaging sauces. Such as meat sauce, tomato sauce, peanut butter, sesame sauce, sour chili, sweet and spicy sauce, snail meat sauce, instant noodle sauce, shower gel, shampoo, disinfectant, etc. granular sauce products.


The vertical sauce packaging machine can choose back seal, three-side seal, four-side seal, gusseted bag and other bag types according to actual needs. For the size of the packaging bag of this packaging machine within 50-200*30-150mm, you can choose this packaging machine, but you need to pay attention to the fullness of the material filling can not exceed 80% of the bag. Otherwise there will be material pinching or air leakage.

Product name

 SK-L320F Soonk Pack Meat Tomato Sauce Keptcup Packaging Machine

Air consumption consumption

0.65mpa,2.5m3/min.6kg/cm2

Packaging film width

320mm

Bag length

50-200mm

Bag width

30-150mm

Max outer diameter of coil

Max.360mm

Packing speed

15-60bags/min

Packaging film thickness

0.04-0.08mm

Power Specifications

220V.50/60Hz.2.8Kw

Dimensions

(L)2080*(W)700*(H)1900mm

Packaging materials

Composite film



What is the cause of the inaccurate metering of the liquid pump of the vertical automatic liquid packaging machine?



 In daily life, you can see bagged liquid products everywhere, such as bagged soy sauce, bagged red oil, bagged chili sauce, bagged ketchup, bagged rice wine, bagged water, bagged milk, etc. Many are packaged in bags. Packed in bags for easy carrying.



For these bagged liquid products, we generally use a vertical automatic liquid packaging machine for packaging, and use a vertical automatic liquid packaging machine to replace manual packaging. This ensures that the liquid products are clean and hygienic during the packaging process and reduces labor costs. And the cost can also improve the efficiency of packaging and shorten the delivery cycle.



The measurement link of the vertical automatic liquid packaging machine is to use the liquid pump for measurement. When adjusting the weight of the vertical automatic liquid packaging machine, we need to adjust the liquid pump to achieve the corresponding effect, but if the liquid pump is not accurate , What caused it?



1. Whether the model of the liquid pump and metering pump matches the metering requirements;



2. Measure whether the cylinder formation is in place;



3. Whether a check valve is installed at the inlet of liquid materials with good fluidity;



4. Whether the action of the unloading cylinder matches the action of the metering cylinder;



5. Whether the discharge port of the liquid pump is blocked quickly and whether there is material leakage;
