Spicy food small granule packing machine for fired food


The spicy food is packed in the video. The main machine of the SK-L320 packaging machine is used with a measuring cup volume measurement and a storage hopper with stirring. Workers put the related spicy products in the storage hopper with stirring (you can also add shopping materials) The feeding machine performs feeding, eliminating the need for manual feeding, reducing labor costs or reducing the work intensity of workers) for mixing and blanking, measuring and blanking through the measuring cup volume metering device, and the packaging machine automatically completes the bag making, filling, and printing of the production date. Sealing, cutting and output of products, etc.

Machine Component

1) Main packing machine,   2)   Storage hopper

Some detaied pcitures of spicy food  packing machine


Electronic control part

6.jpg.

Intelligent industrial-grade touch screen


Large capacity storage hopper


Stirring device

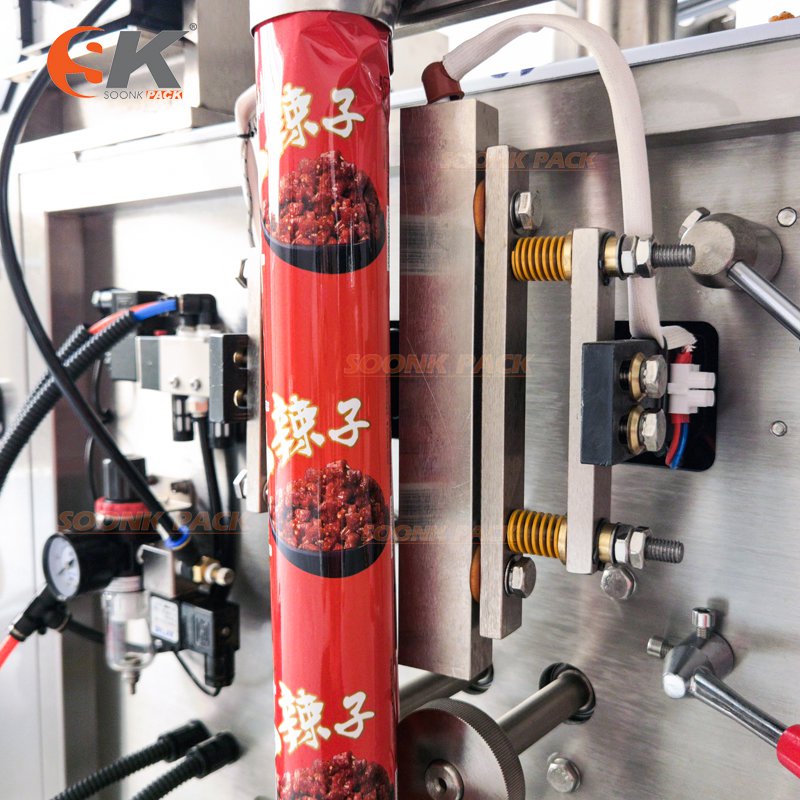

Vertical sealing device


Horizontal sealing device

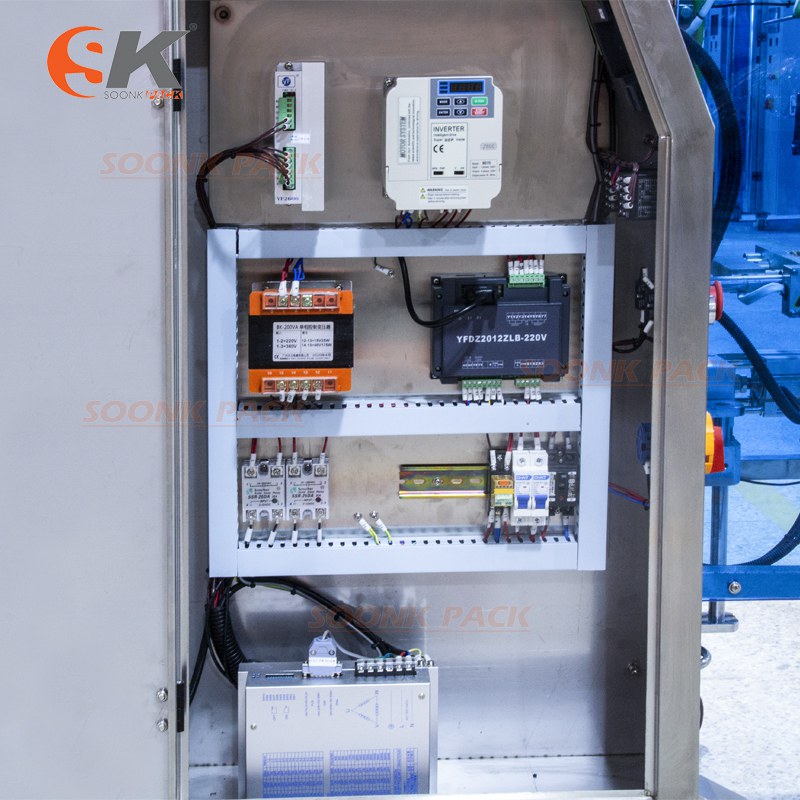

 Electronic control part: the circuit is clear and easy to understand .

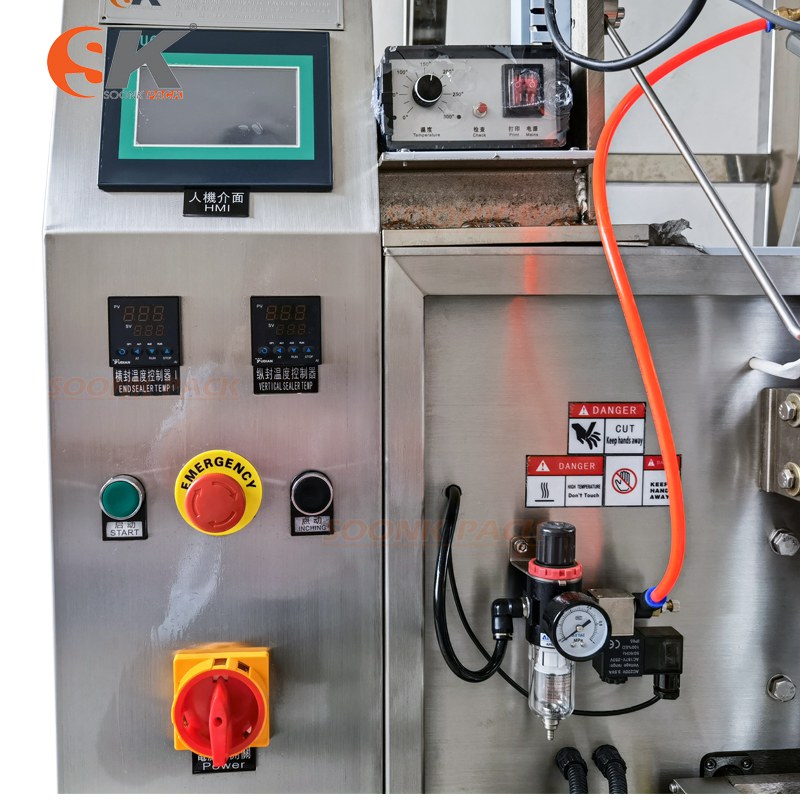

Intelligent industrial-grade touch screen: high sensitivity,stable operation, easy to understand and easy to operate; two temperature control meters, independent control and stability, making beautiful bags.

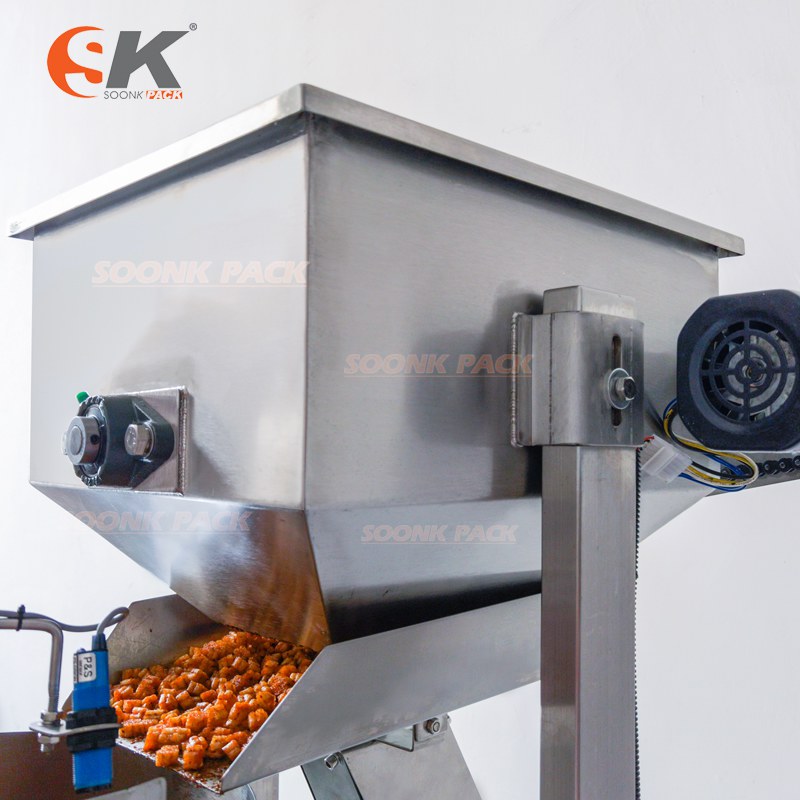

 Large capacity storage hopper: It adpots 304 stain-less steel, capable of storing large quantities of material.

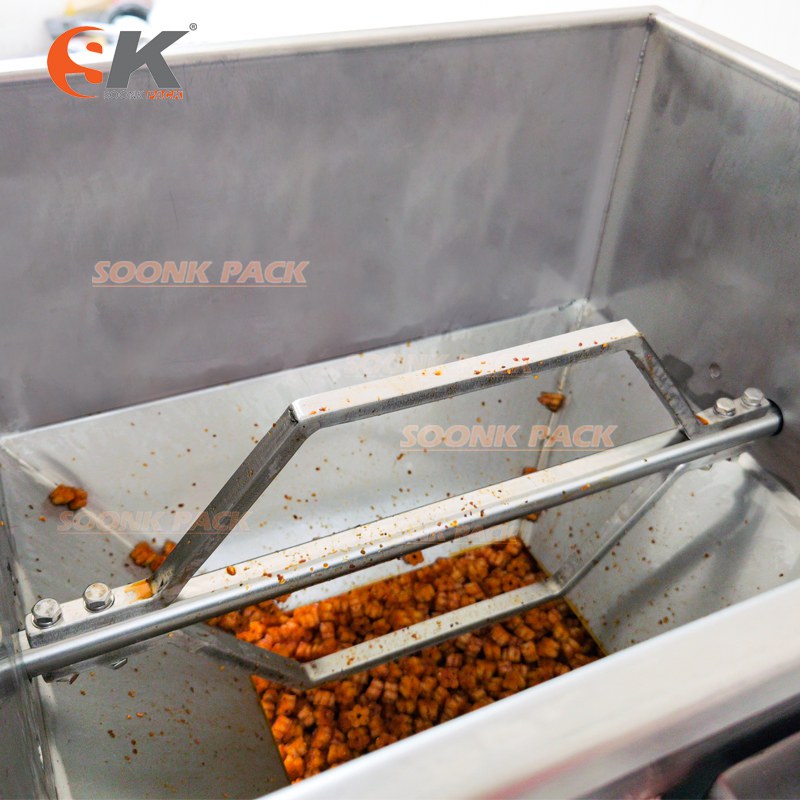

Stirring device: The storage hopper is equipped with a stirring device, which allows the materials to be stirred during the packaging process,so that the materials can be evened.

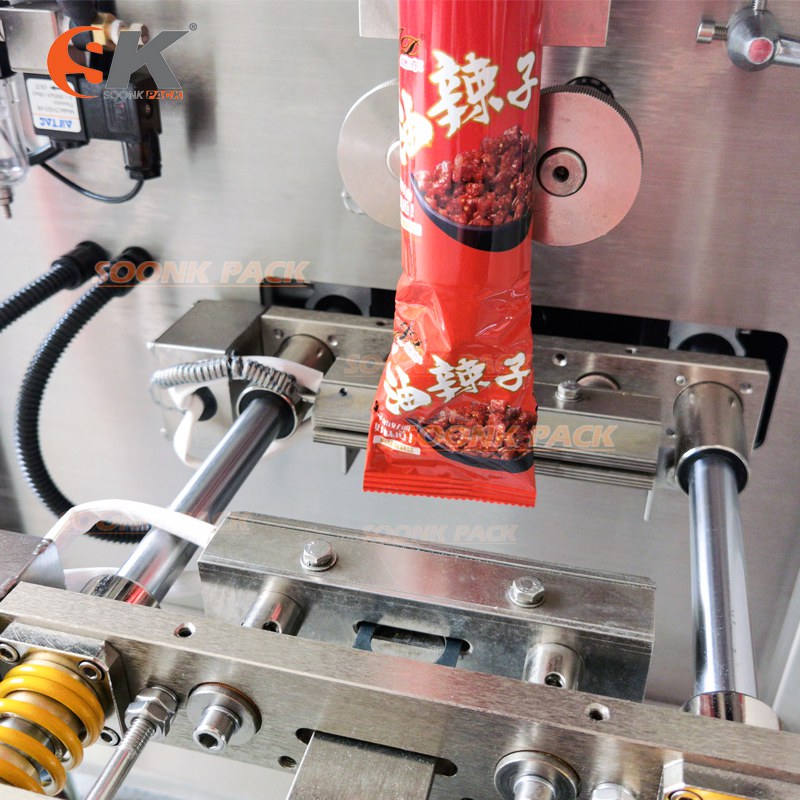

Horizontal sealing device: The horizontal sealing rod adopts a movable flip cover, which is convenient for easy replacement of the heating tube when it fails.

Horizontal sealing device: The horizontal sealing rod adopts a movable flip cover, which is convenient for easy replacement of the heating tube when it fail.

Product description

The vertical granule packaging machine is widely used in the packaging of various granular objects. Its accuracy is relatively high and the waste of materials is reduced. Greatly improve the production of the dynamic particle packaging machine. The working principle of the particle packaging machine is that when it is working, the packaged materials fall into the vibrating feeder from the supply bin, vibrate with the vibrating feeder, and flow into the weighing hopper evenly. When the weight is equal to the weighing value, the feeding stops and the weighing is completed



Product Features:

The spicy food is packed in the video. The main machine of the SK-L320 packaging machine is used with a measuring cup volume measurement and a storage hopper with stirring. Workers put the related spicy products in the storage hopper with stirring (you can also add shopping materials) The feeding machine performs feeding, eliminating the need for manual feeding, reducing labor costs or reducing the work intensity of workers) for mixing and blanking, measuring and blanking through the measuring cup volume metering device, and the packaging machine automatically completes the bag making, filling, and printing of the production date. Sealing, cutting and output of products, etc.



Performance characteristics of spicy food packaging machine:

1) The main machine of the vertical granular oil spicy food packaging machine is made of stainless steel, and the overall structure is compact, firm, and simple in total;

2) Using photoelectric eye control system, stepping motor to pull film, motor with brake function, avoid wasting consumables, stable and reliable performance, lower noise;

3) Using frequency conversion speed regulation, the operation is more stable, the noise is lower, and the failure rate is low;

4) Fast packaging speed and good effect;

7) Adopt the measuring cup volume measuring device for measuring, unloading, and fast measuring speed;

8) The packaging machine automatically completes the weighing and measurement of materials, bag making, product blanking, production date printing and labeling, product filling, sealing, cutting, and output all at one time.

9) The packaging equipment as a whole is reasonably designed by the technical team, concise and firm, stable in performance, low in operating noise, low in failure rate, and long in service life.

10) The equipment is small, occupies a small area, and is easy to move. The main components are made of stainless steel. The appearance is beautiful and meets the national food hygiene standards.



Features of Volumetric Cup Metering Device

1. 4 groups of adjustable measuring cups are quantified, suitable for granular materials with good fluidity.

2. Adjusting the capacity is achieved by rotating the bolts under the turntable.

3. Equipped with fixed or mobile brushes for different materials to prevent breakage.

Put the material into the storage hopper, pass the vibration material down to the turntable, the volumetric cup metering completes the weight measurement, and then fill the target weight material into the packaging bag, and finally pass the high temperature seal and cut. It is a high speed packing machine.


This automatic vertical granular chili pepper packaging machine can not only pack chili peppers, but also all kinds of granular products, strips and flakes, such as puffed food, shrimp cracks, melon seeds, rice, seeds, potato chips, crispy rice, quick-frozen food , Salt and other products.


Product name

 SK-L320A Spicy food small granule packing machine for fired food

Air consumption consumption

0.65mpa,2.5m3/min.6kg/cm2

Packaging film width

320mm

Bag length

50-200mm

Bag width

30-150mm

Max outer diameter of coil

Max.360mm

Packing speed

15-60bags/min

Packaging film thickness

0.04-0.08mm

Power Specifications

220V.50/60Hz.2.8Kw

Dimensions

(L)2080*(W)700*(H)1900mm

Packaging materials

Composite film

Precautions for the use of vertical granule packaging machine



 The vertical granule packaging machine is widely used. The vertical granule packaging machine we produce is for the packaging of small bags of products, and the weight range of the packaging is within 10 kg. There are many types of vertical granule packaging machines, and the selected model is based on the size of the packaged bag.



 When we buy the vertical granule packaging machine back, what should we pay attention to when using the vertical granule packaging machine? as follows

1) Before starting each time, check and observe whether there are any abnormalities around the machine;

2 When the vertical granule packaging machine is in operation, it is forbidden to touch the working parts with body, hands, head and hair;

3) When the vertical granule packaging machine is in operation, it is forbidden to handle or tools to prevent the sealing knife seat, and do not touch the horizontal and vertical sealing rollers, otherwise it will be burned;

4) During the normal operation of the machine, it is forbidden to switch the operation button frequently, and it is forbidden to change the parameter setting value at will;

5) Foreign objects must not be mixed in during the packaging process, otherwise it may cause discharging blockage, inaccuracy or damage to the machine parts;

6) The storage piston of the vertical granule packaging machine and the seal ring at the lower end of the discharge cylinder should be replaced in time.



 When the vertical particle packaging machine finishes its work, we need to clean up the machine to prepare for the next day's operation. Fill the vertical particle packaging machine’s gear meshes, seated bearing oil holes and moving parts regularly. Engine oil is lubricated. When adding lubricating oil, do not drop the oil on the transmission flat belt to prevent slippage or accelerate the aging of the belt.



   Whether it is a vertical granule packaging machine or other packaging machines, you need regular maintenance, so that it can be used for a long time. If you buy the equipment back, just work and don’t maintain it, then the equipment will easily strike.
