Three Side Seal Starch Powder Packing Machine


  • There are two screw metering methods for our powder packaging machine, which are straight screw and oblique screw. Straight screw is suitable for powder with excellent fluidity, and oblique screw is suitable for powder with poor fluidity.
  • Packing bag type: standard pillow bag , optional three-side seal, four-side seal, five-pack bag type, etc., can be equipped with punching device (aircraft hole, round hole, portable hole)

Machine Component

1) Main packing machine,2)  screw auger filler device.

Main packing machine :Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

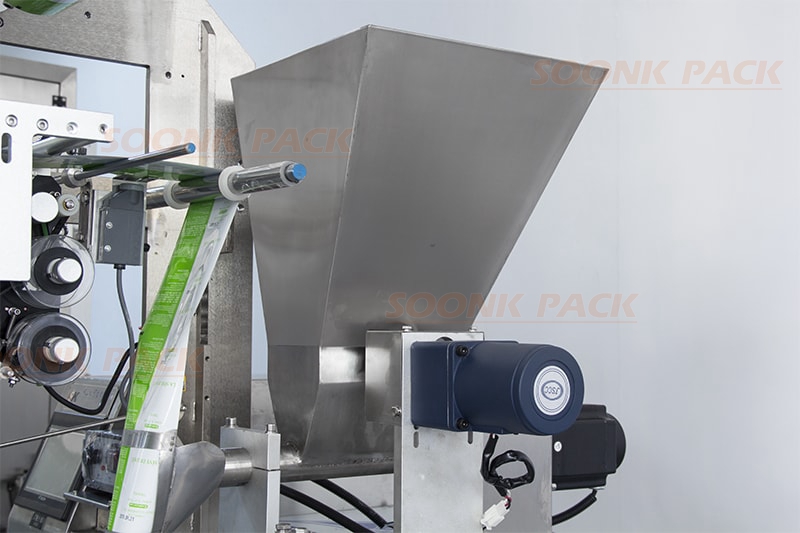

Auger filler device: Powder metering device is made of high-quality 304 stainless steel, with inclined screw metering device, which is accurate in weighing and measuring. The weighing and measuring speed is fast.





Performance Characteristics

1、The compact structure , firm , reasonable design , concise.

2、Spiral measurement , stepping motor drive design is reasonable and reliable , stable performance.

3、Fast speed , high precision , low noise and low failure rate.

4、It can finished automatically from metering ,filling , date printing to product output and

This is three side sealing bag powder packing machine, which is a small machine for small gram weight powder material packing, with fast packing speed, small occupation area and economic benefits.

Put the material into the powder screw metering device, and the powder screw meter will complete the weight measurement, and then the material with the target weight is filled into the packaging machine. The machine can realize automatic lifting, measuring, forming sealing bag, date coding, a series of automatic packaging process.

Application

All kinds of powder materials with good fluidity, such as flour, bean powder, coffee powder, washing powder, chili powder etc.

Model

SK-L3B320F

Packaging Film

Max 320mm

Bag Length

50-200mm

Bag Width

30-150mm

Packing Film Roll Diameter

Max.300mm

Packaging Speed

20-65bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 2kW

Dimension

(L)1050*(W)920*(H)1610mm

Total Weight of Machine

350kg

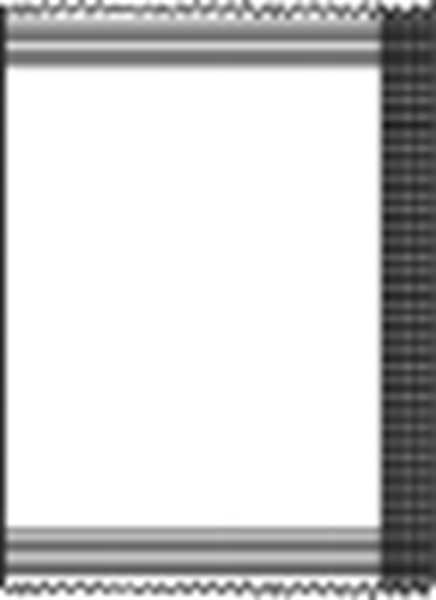

Three side seal

Three side seal.png

We need to know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. AUTOMATIC POWDER PACKING MACHINE, common questions from customers are as follows.

1. Need to judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. What powder characteristics are suitable for machine packaging? Our machine is suitable to pack dry powder, good fluidity, non-sticky and non-heating powder. 3. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 4. Is the more shapers better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 5. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 6. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 7. How many days does it take to produce a machine? , The production time is about 20-30 days, because our machines are installed and debugged at the same time to ensure high quality. 8. The customer also asked how long is the machine warranty period? We offer 12 months warranty, starts from the issue date of bill of loading and life time maintenance service. 9. Customers most often ask how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
