Automatic Marshmallow Snack Packaging Machine With 14 Electronic Scale


  • This packaging machine is fully automatic, from putting the material into the Z-type loader, then lifting it to the multi-head scale, automatically weighing through the multi-head scale, reaching the target weight, filling it into the packaging machine and sealing the synthetic bag, and then conveying the finished product The machine outputs the packed bags.
  • The measuring range of this machine can reach 1-7 kg, the bag length can reach 100-500mm, and the width can reach 180-350mm, which can realize large packaging for machine production.

Machine Component

1) Main packing machine   2)14 head electronic scale 3) Z type material elevator 4) Supporting platform  5) Output conveyor

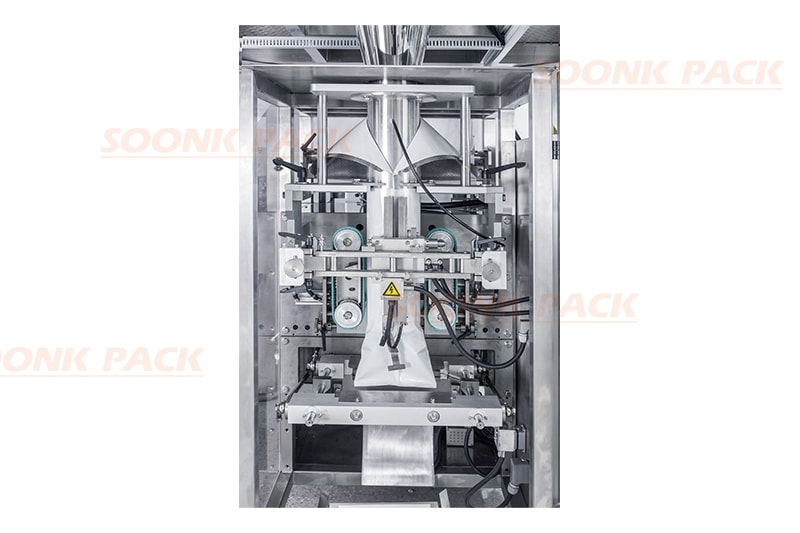

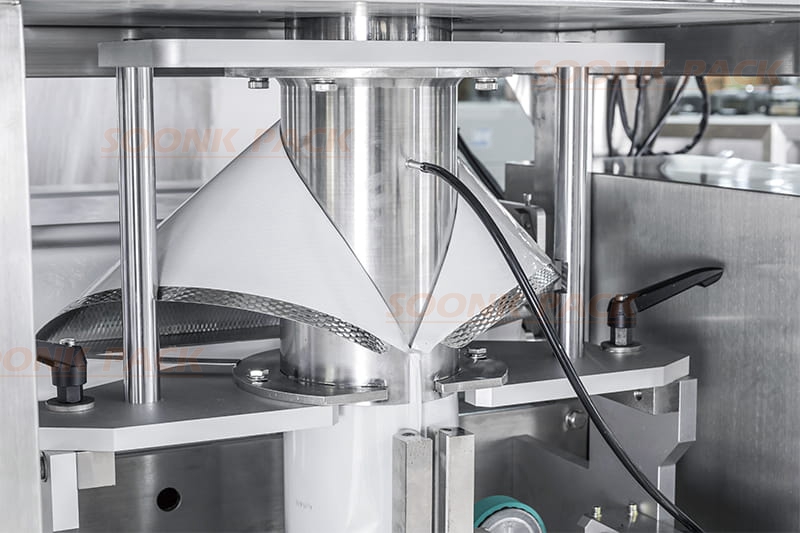

Main packing machine :Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

Multi head combination scale: High-precision sensors enable accurate metering for instant implementation.According to the characteristics of the object to be measured, the opening and closing speed of the hopper door can be finely adjusted to prevent breakage. All parts are made of stainless steel and are clean and hygienic.Good compatibility and easy to use with other packaging equipment.

Z type material elevator  : The Z-type feeder can control the speed, which can raise the material to the 10-head combined electronic scale at a uniform speed, and is controlled by electric eye induction to ensure sufficient material.

Supporting platform  :With a thick and stable support platform, workers can directly stand on it to clean up the computer combinated scale or carry out maintenance, which is convenient, fast, safe and reliable.

Output conveyor :The finished product conveyor is installed at the product outlet of the main machine of the packaging machine, which allows the finished product to be transported away from the bottom of the main machine, avoiding product accumulation and blockage and causing downtime.





Machine Features

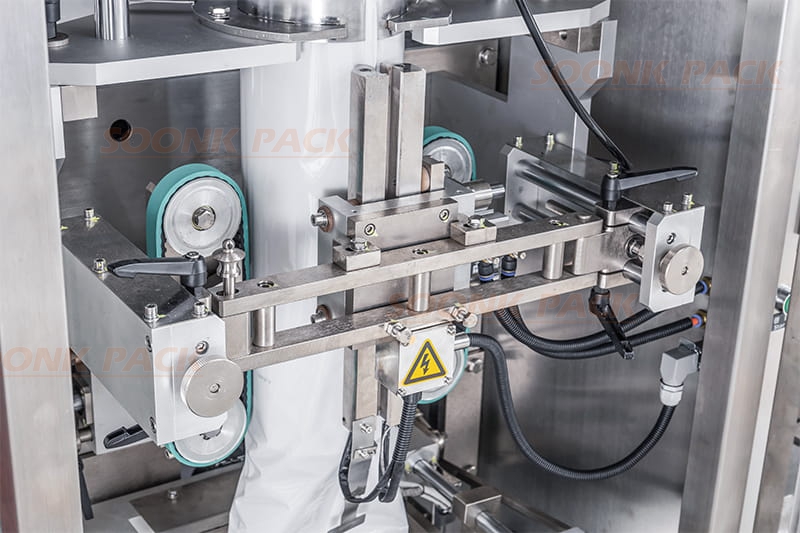

1. WIth import sevo motor control , double belt pulling film, ensure stable film feeding and nice bag forming.

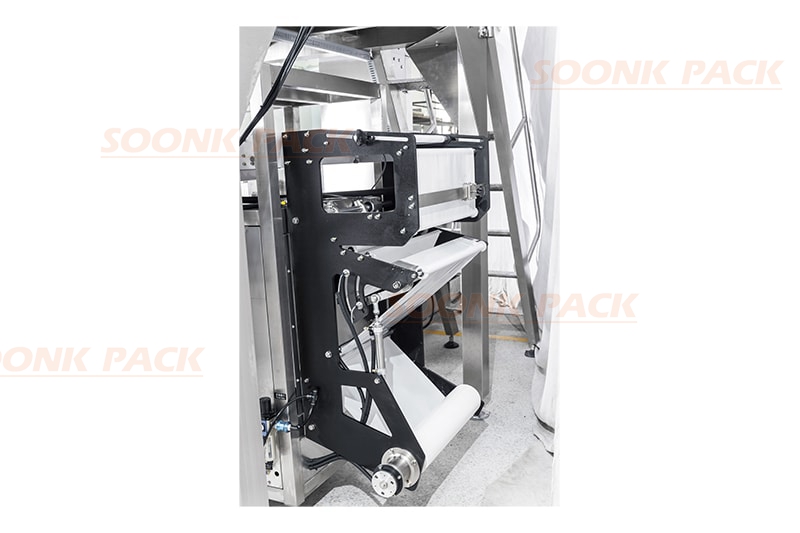

2 .Multi-language operating system choices.It is easier and faster to replace the packaging film with an external film release mechanism.
3. Multi-language operating system choices.It is easier and faster to replace the packaging film with an external film release mechanism.
4. Automatically finish from feeding, metering, bag filling, date printing to product output.

The material is lifted to the 14-head electronic scale by the Z-type material elevator, and the weight is measured by the 14-head electronic scale and then the material with the target weight is filled into the packaging machine. The machine can realize automatic lifting, measuring, forming sealing bag, date coding, a series of automatic packaging process.

Application

Suitable for all kinds of irregular, granular, block, strip, high measurement accuracy and easily broken bulk goods packaging, such as puffed food, shrimp strips, potato chips, fruit slices, rice crust, peanuts, melon seeds, candy, biscuits, beans and other products.

Model

SK-L720DT

Packaging Film

Max 720mm

Bag Length

100-500mm

Bag Width

180-350mm

Packing Film Roll Diameter

Max.360mm

Packaging Speed

5-55bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 3kW

Dimension

(L)1800*(W)1310*(H)2050mm

Total Weight of Machine

750kg

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

bag type 1.png

First of all, we must know the material, bag size and weight. These things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. Common questions from customers are as follows.

1. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. Only the width of the bag is also possible, because the length of the bag is adjustable. 2. Is the more shapers better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will cause the bag to have deviations. 3. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 4. How many days does it take to produce a machine? The production time is about 30-40 days, because our machines are installed and debugged at the same time to ensure high quality. 5. The customer also asked how long is the machine warranty period? We offer 12 months warranty, starts from the issue date of bill of loading and life time maintenance service. 6. Most customers ask how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
