Automatic Weighing Packing Machine Multihead Weigher Packing Solution For Biscuit And Cookies


  •  Customized solutions for large packaging production lines are mainly used for large packaging production needs.
  • We can customize the product automatic assembly line conveyor belt according to the customer's factory needs, connect the discharge port, carry out the automatic supply of materials and integrate the packaging, and realize the requirements of full automation. Realize automatic assembly line operation and realize the generation of production packaging.
  • The packaging production line can also develop different packaging production line plans for different products.
  • It can be the packaging of powder products, granular products and liquid products.

Machine Component

1) Main packing machine  2) Multihead electronic scale  3) Z type material elevator  4) Supporting platform  5) Output conveyor  6)Conveying belts

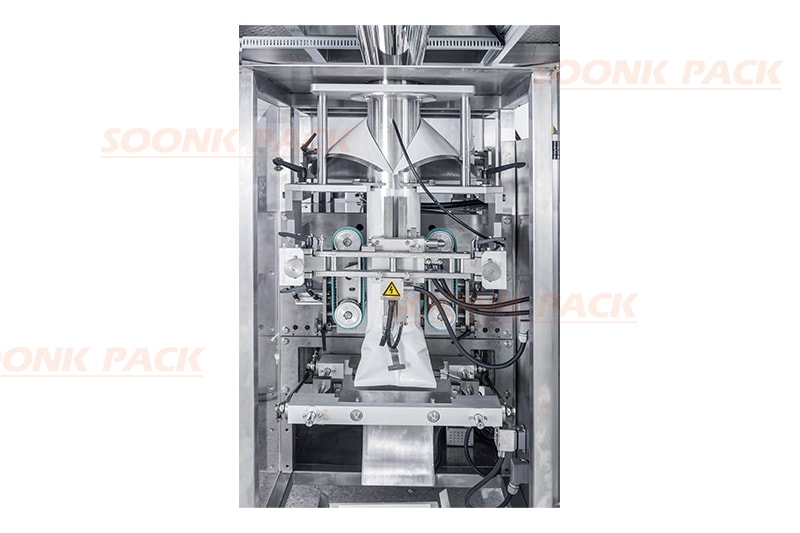

Main packing machine :Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

Multi head combination scale: High-precision sensors enable accurate metering for instant implementation.According to the characteristics of the object to be measured, the opening and closing speed of the hopper door can be finely adjusted to prevent breakage. All parts are made of stainless steel and are clean and hygienic.Good compatibility and easy to use with other packaging equipment.

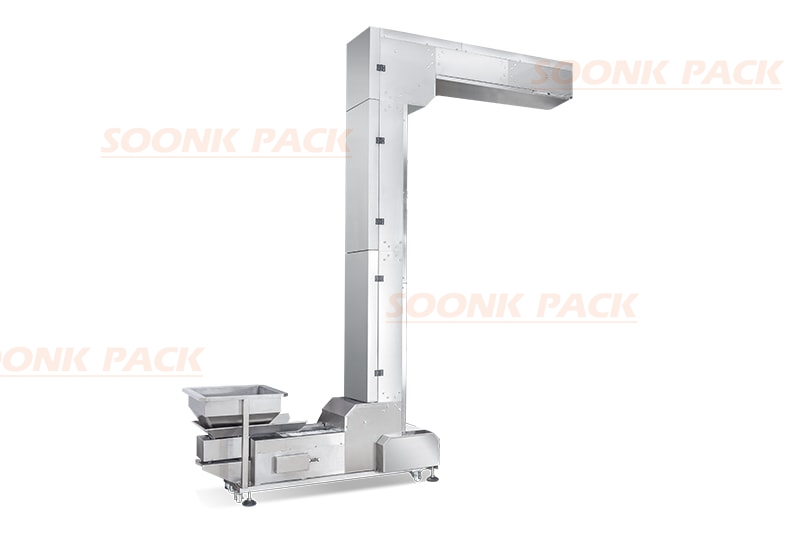

Z type material elevator  : The Z-type feeder can control the speed, which can raise the material to the 10-head combined electronic scale at a uniform speed, and is controlled by electric eye induction to ensure sufficient material.

Supporting platform  :With a thick and stable support platform, workers can directly stand on it to clean up the computer combinated scale or carry out maintenance, which is convenient, fast, safe and reliable.

Output conveyor :The finished product conveyor is installed at the product outlet of the main machine of the packaging machine, which allows the finished product to be transported away from the bottom of the main machine, avoiding product accumulation and blockage and causing downtime.

 Conveying belts:Through the conveyor belt, the material is accurately transported to the Z-type feeder, which is fast and effective.


Detailed picture:




4.jpg.



Machine Features

1. It adopts imported servo motor control and double film pulling system to ensure smooth conveying of packaging film and flat bag.

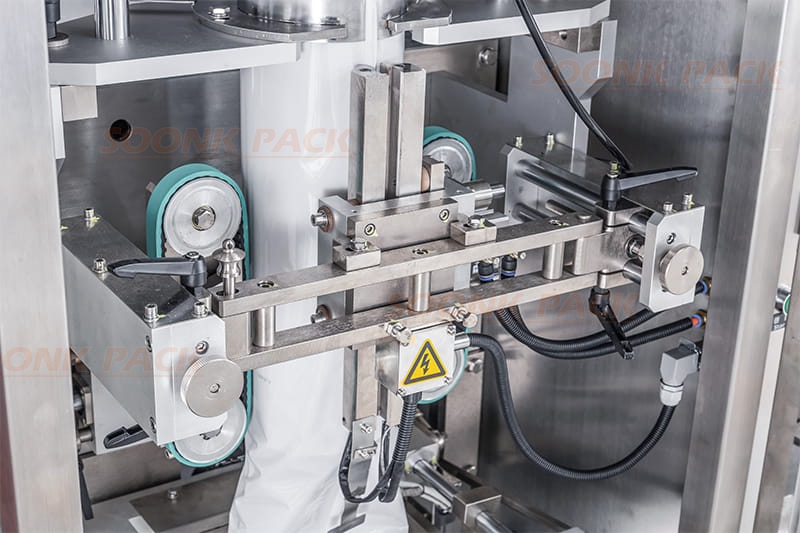

2. Imported brand air cylinders are used to ensure good sealing performance of the bag and clear sealing lines, prevent air leakage of the packaging bag and reduce the waste rate.

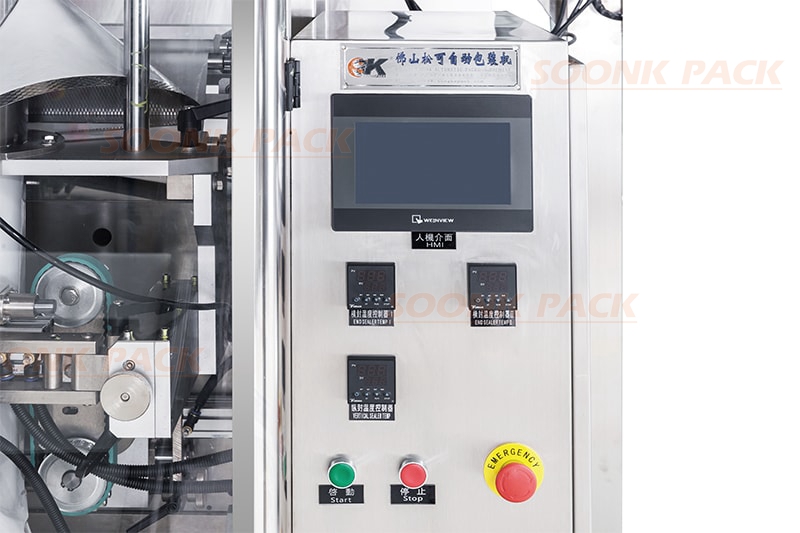

3. Multi-language operating system selection.

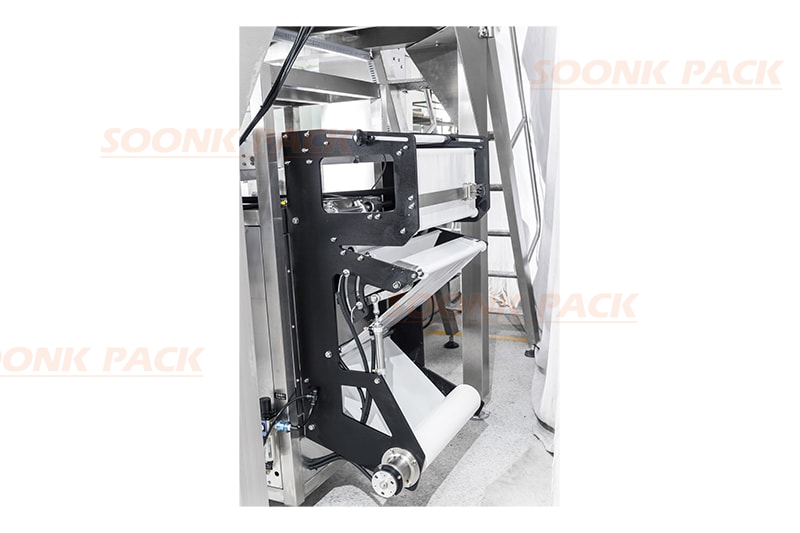

4. Using an external film placement mechanism, it is more convenient to replace the packaging film.
5. The entire production process of feeding, measuring, filling and bag making, date printing, and product output are completed automatically.

First, the material is transported to the Z-type loader through the conveyor belt. The Z-type loader uses vibration to lift the material to a 10-head scale, which automatically weighs, and then fills the target weight of the material into the packaging machine to seal a synthetic bag. Finally, the machine can realize automatic lifting, metering, forming and sealing, date coding, a series of automatic packaging processes.


Suitable for all kinds of irregular, granular, block, strip, high measurement accuracy and easily broken bulk goods packaging, such as puffed food, shrimp strips, potato chips, fruit slices, rice crust, peanuts, melon seeds, candy, biscuits, beans and other products.

 Model:

SK-L720DT

Packaging film:

Max 720mm

Bag length:

100-500mm

 Bag width :

180-350mm

Packing Film Roll Diameter:

Max.360mm

 Packaging speed :

5-55bags/min

 Packing thickness :

0.04-0.08mm

 Power supply:

220V,50Hz/60Hz,3kW

Dimension :

(L)1800*(W)1310*(H)2050mm

 Total weight of machine :

750kg

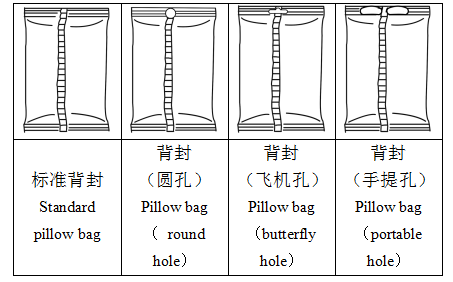

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

bag type 1.png

First of all, we must know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. This is automatic weighing packing machine multihead weigher packing solution for biscuit and cookies. Common questions from customers are as follows.

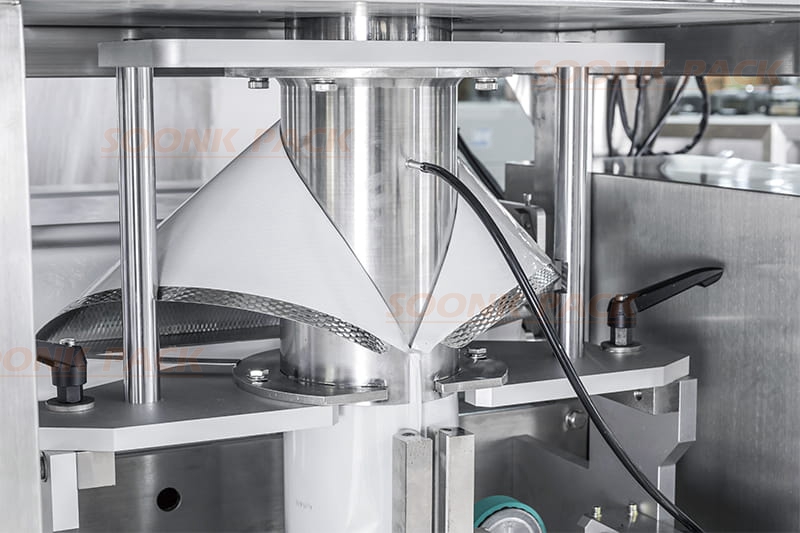

1. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. Only the width of the bag is fixed, because the length of the bag is adjustable. 2. What is the maximum bag size of this machine? The bag length of this machine is 100-500mm, and the maximum width is 180-350mm. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will cause the bag to have deviations. 4. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 5. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 6. How many days does it take to produce a machine? The production time is about 30-45 days, because our machines are installed and debugged at the same time, so as to ensure high quality. 7. The customer also asked how long is the machine warranty period? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 8. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
