Bag In Bag Food Automatic Packing Machine


  • The feature of this machine is that it can solve the limited problems of factory buildings, meet the requirements of factory buildings less than 3 meters, and require the realization of automation. This solution needs to use two Z-type feeders to cooperate with the feeding, which can solve the problem of low workshop.
  • The measuring range of this machine can reach 1-7 kg, the bag length can reach 100-500mm, and the width can reach 180-350mm, which can realize large packaging for machine production.

Machine Component

1) Main packing machine, 2) multi head combination scale, 3) 2 sets of z-type material conveyors, 4) output conveyor (the finished product conveyor).

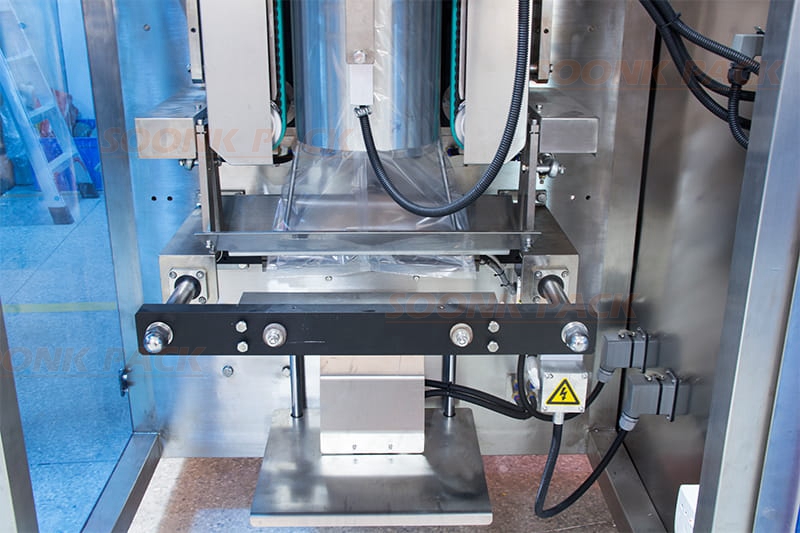

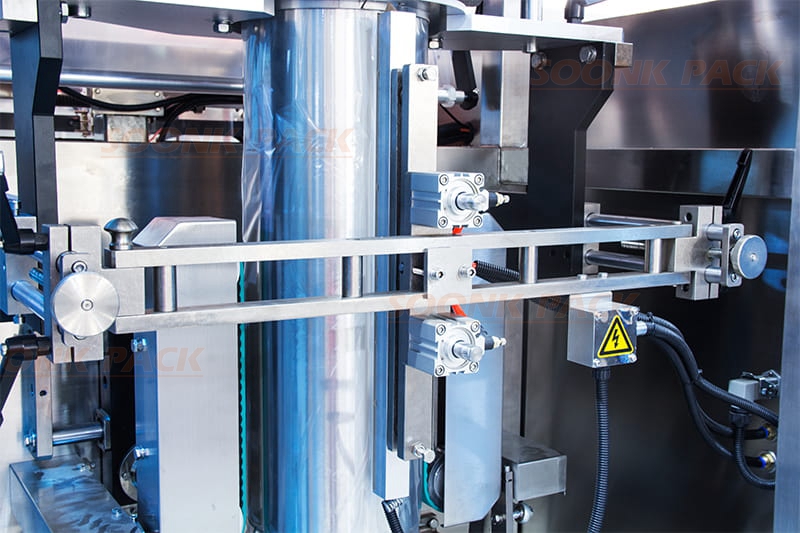

Main packing machine :Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

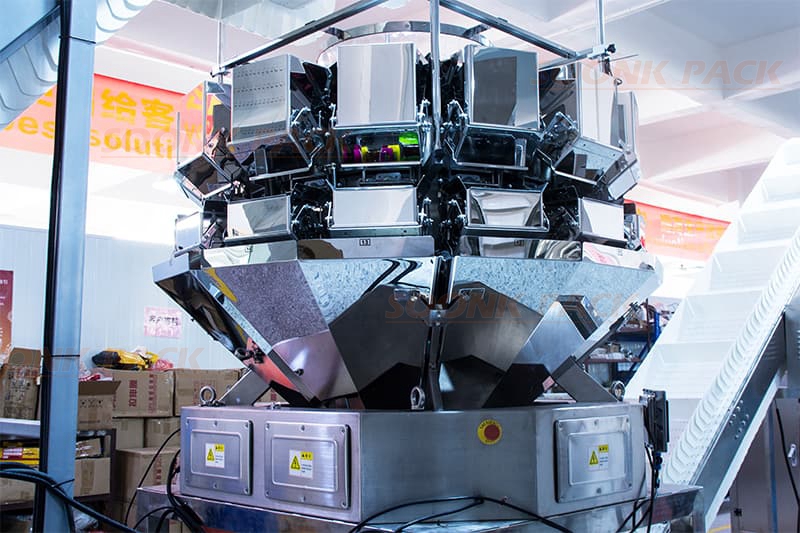

 Multihead electronic scale :Multi-head electronic combination scale : High-precision sensors enable accurate metering for instant implementation.According to the characteristics of the object to be measured, the opening and closing speed of the hopper door can be finely adjusted to prevent breakage. All parts are made of stainless steel and are clean and hygienic.Good compatibility and easy to use with other packaging equipment.

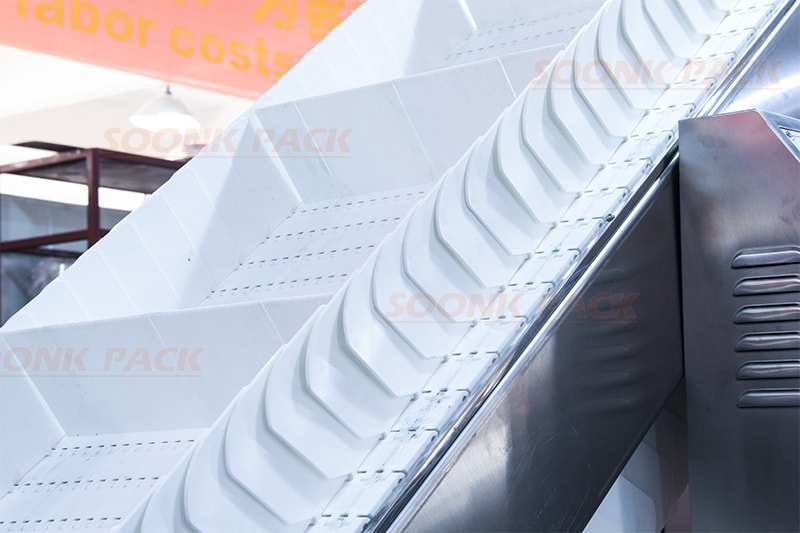

 Z type material elevator  : The Z-type feeder can control the speed, which can raise the material to the multi-head combined electronic scale at a uniform speed, and is controlled by electric eye induction to ensure sufficient material.

Output conveyor :The finished product conveyor is installed at the product outlet of the main machine of the packaging machine, which allows the finished product to be transported away from the bottom of the main machine, avoiding product accumulation and blockage and causing downtime.







Machine Features

The feature of this machine is that it can solve the problem of low factory building, meet the requirement that the machine height is not more than 3m, and realize the requirement of automatic packaging. Two Z-type feeding conveyors are used to cooperate with feeding to avoid the limitation of workshop height caused by the high assembly height of the original machine.

The Z-type feeder vibrates and feeds the materials to the multi head combined electronic scale for automatic weighing, and then fills the materials with the target weight into the packaging machine, and then the finished product conveyor outputs the packed bags. It can realize automatic lifting, measuring, forming and sealing bags, date coding, and output a series of automatic packaging processes.

Application

It is suitable for the quantitative weighing and packaging of puffed food such as potato chips, puffed food, large shell nuts such as walnuts, cashew,pistachios, candy, melon seeds, biscuits, fruit and vegetable chips, fried goods, jelly, plum, chocolate and other leisure food, quick-frozen dumplings, frozen food, pet food, hardware and other granular, block, strip materials.

Model

SK-L720

Air Consumption

0.65mpa, 2.5m3/min

Packaging Film

380-720mm

Bag Length

100-500mm

Bag Width

180-350mm

Packing Film Roll Diameter

Max.360mm

Packaging Speed

5-55bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 3kW

Dimension

(L)1800*(W)1310*(H)2050mm

Total Weight of Machine

750kg

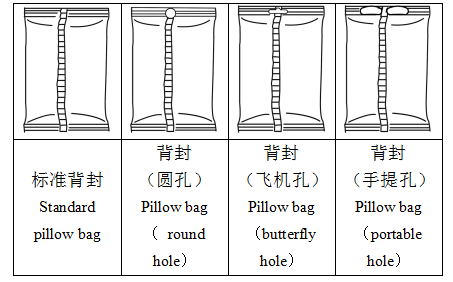

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

bag type 1.png

First of all, we must know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. This is a bag-in-bag food packaging machine. Common questions from customers are as follows.

1. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. Only the width of the bag is fixed, because the length of the bag is adjustable. 2. What is the maximum bag size of this machine? The bag length of this machine is 100-500mm, and the maximum width is 180-350mm. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will cause the bag to have deviations. 4. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 5. How many days does it take to produce a machine? The production time is about 30-45 days, because our machines are installed and debugged at the same time, so as to ensure high quality. 6. The customer also asked how long is the machine warranty period? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 7. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
