Disposable Mask Flow Wrapping Machine


  • Features of Horizontal Machine:suitable for 1-10 pieces disposable mask packing, and single product and large particle product.
  • Manually put the materials into the flat table, pass through the conveying material packaging machine on the flat table, then fill into the packaging bag, and finally seal and cut the bag through high temperature.

Machine Component

1) Main packing machine, 2) tailstock.

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output

Tailstock: first, the tailstock can be adjusted according to the size of the material, then the material is put into the tailstock orderly, and finally seal and cut the  bag by high temperature.

Features of Horizontal Machine

Suitable for 1-5pieces disposable mask packing, and single product and large particle product.

Manually put the materials into the flat table, pass through the conveying material packaging machine on the flat table, then fill into the packaging bag, and finally seal and cut the bag through high temperature.

Application

Packaging various kinds 01 regular objects like biscuits, pies, chocolates, bread, instant noodles, moon-cakes, drugs, daily appliances, industrial parts, paper boxes, plates, etc.

Model

SK-W320X

Packaging Film

Max 320mm

Bag Length

65-190mm or 120-280mm

Bag Width

50-160mm

Product Height

Max.55mm

Packaging Speed

40-230 bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 2.6kW

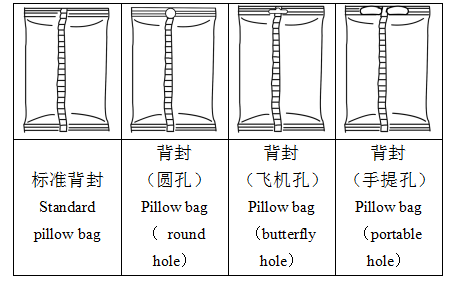

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

bag type 1.png

We need to know the material, the size of the bag and the height of the material, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material and bag size. This is a disposable mask machine. The common questions from customers are as follows.

1. Judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 3. Whether the height of the main product of this horizontal machine is different from the front and back of the packaging bag. These two determine the model of the machine. 4. Is the more shapers better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 5. How many days does it take to produce a machine? The production time is about 25-30 days, because our machine is installed and debugged at the same time, so as to ensure high quality. 6. The customer also asked how long the machine warranty period is? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 7. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
