Flavoring sauce packaging machine


  • This material is a liquid with particles.When the material is manually put into the storage hopper, the stirring function needs to be turned on to mix the material evenly.
  • Packing  bag type :standard pillow bag, optional three side seal, fourside seal, five linking bags and other bag types, can be equipped with punching devices (butterfly holes, round holes, portable holes)

Machine Component

1) Main packing machine,2)  liquid filling metering device.

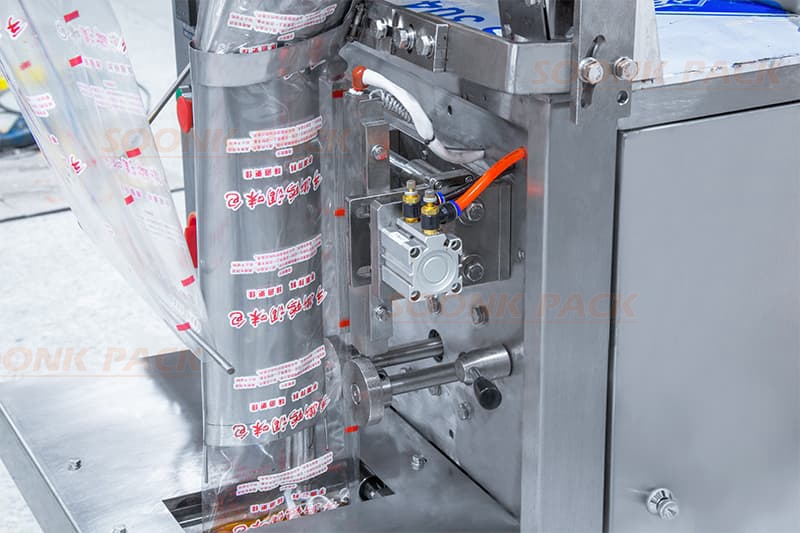

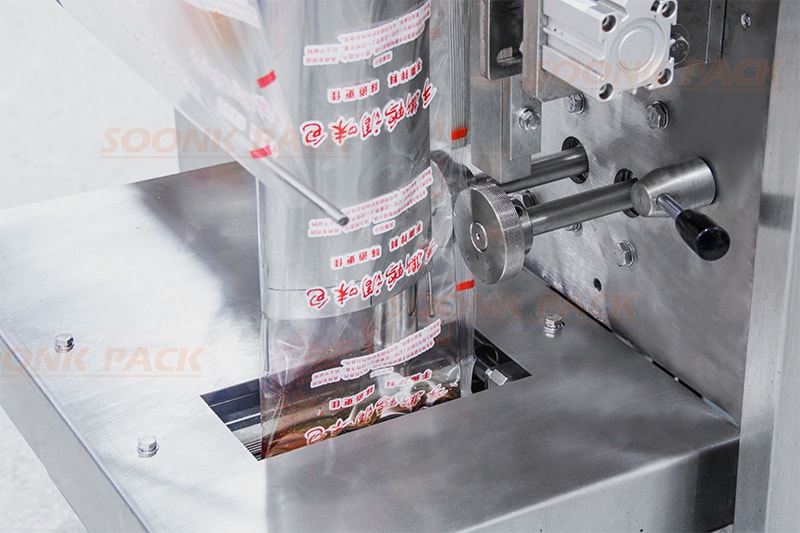

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output

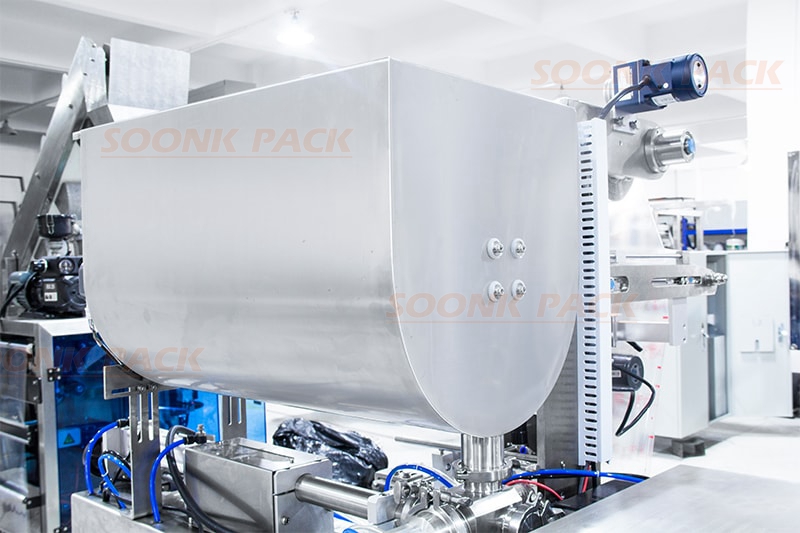

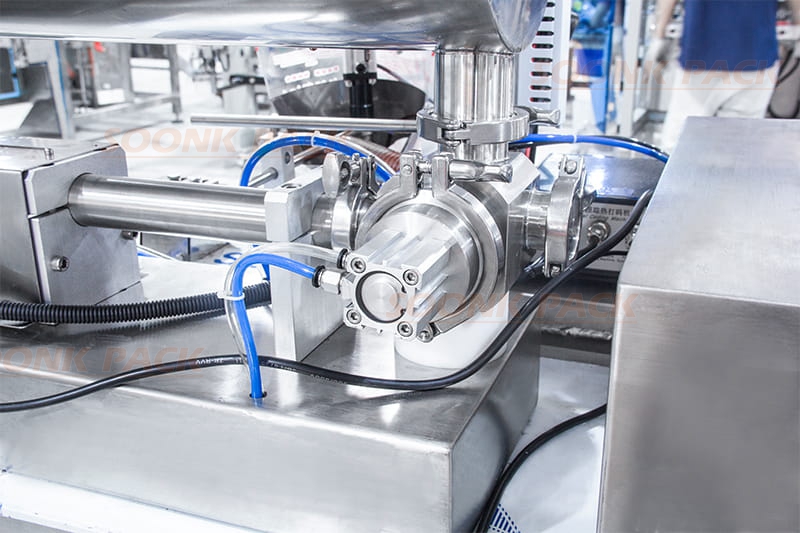

Liquid filling metering device: Small size, CNC device, automatic filling, improve filling efficiency, filling accuracy and can adjust the weight of relevant data according to actual needs.





Performance Characteristics

1. The machine is featured with compact structure durable logical design and precise.

2. Adopts light sensor control system, stepping motor control film transporting system, reliable, and stable performance.

3. Using VVVF, operation is much stable, low noise and low malfunction.

This material is a liquid with particles. When the material is manually put into the storage hopper, the stirring function needs to be turned on to mix the material evenly.

By manual materials are put into the liquid filling metering device, the stirring is turned on, and the liquid filling meter completes the weight measurement, and then the material of the target weight is filled into the packaging machine to seal the bag. Bag making, measuring, filling, sealing, and bag cutting can be completed one time.

Application

Liquids/sauces: detergents, rice wine, soy sauce, juice, beverages, ketchup, peanut butter, jam, chili sauce, etc.

Model

SK-L3B320QD-Y

Packaging Film

Max 320mm

Bag Length

50-200mm

Bag Width

30-150mm

Packing Film Roll Diameter

Max.300mm

Packaging Speed

15-65bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 2kW

Dimension

(L)1000*(W)1140*(H)1700mm

Total Weight of Machine

350kg

Three side seal

Three side seal.png

We need to know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. Flavoring Sauce Packaging Machine, common questions from customers are as follows.

1. Need to judge whether the material is suitable for the machine? It is best to send the material and packaging film to our company for free testing. Regarding the material, this liquid machine is suitable for packaging liquid products with small particles. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 5. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 6. How many days does it take to produce a machine? , The production time is about 20-30 days, because our machines are installed and debugged at the same time to ensure high quality. 7. The customer also asked how long is the machine warranty period? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 8. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
