Fresh Vegetable Packing Machine


  • This machine is suitable for the packaging of soft, long strips and bulk materials such as towels, paper towels, dried noodles, egg rolls, sausages, squid, popsicles, soft candies, biscuits, fresh fruits, etc.
  • The biggest feature of this machine is three servo controls, which control the middle seal servo, end seal servo, and film release servo respectively to make the machine run smoothly.

Machine Component

1) Main packing machine,2)  tailstock.

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output

Tailstock: first, the tailstock can be adjusted according to the size of the material, then the material is put into the tailstock orderly, and finally seal and cut the  bag by high temperature.

Machine Features

The machine has three servo control, mid sealing servo control, end sealing servo control and film release servo control.

The feature of the machine is that it is the pneumatic end sealing bar, the length of the bag can be cut off at will. When there is no material, the packaging film will stop running to ensure that there is no empty bag.

Manually put the materials into the flat table, pass through the conveying material packaging machine on the flat table, then fill into the packaging bag. Finally, the bag is sealed and pneumatically cut.

Application

Suitable for packaging soft, strip and unorganized objects like towels, tissues, noodles, egg rolls, sausages, fish, Ice-lollies, soft candies, fresh fruits, etc.

Model

SK-W450X

Packaging Film

Max 450mm

Bag Length

180-450mm

Bag Width

50-180mm

Product Height

Max.80mm

Packaging Speed

30-120 bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 2.8kW

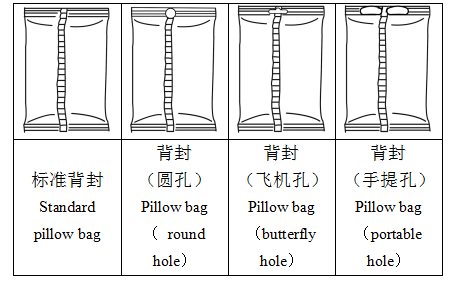

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

bag type 1.png

We need to know the material, the size of the bag and the height of the material, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material and bag size. FRESH VEGETABLE PACKING MACHINE, common questions from customers are as follows.

1. Judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 3. Whether the height of the main product of this horizontal machine is different from the front and back of the packaging bag. These two determine the model of the machine. 4. Is the more shapers better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 5. How many days does it take to produce a machine? The production time is about 25-30 days, because our machine is installed and debugged at the same time, so as to ensure high quality. 6. The customer also asked how long the machine warranty period is? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 7. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
