Grain Packing Machine


  • This machine is a small particle packaging machine with a packaging weight of less than 50-1000g, high precision, fast packaging speed, high output and stable operation. This is an automatic packaging machine with high cost performance.
  • This package uses a four-head weigher as a measuring method. The four-head weigher is controlled by a microcomputer, adopts double vibration feeding, imported instruments, advanced technology and simple operation. The all-stainless steel sealed body has the effect of preventing corrosion and dust. The metering bucket can be quickly disassembled for easy cleaning and maintenance

Machine Component

1) Main packing machine,2)  4 head weigher, 3) feeding conveyor, 4) output conveyor.

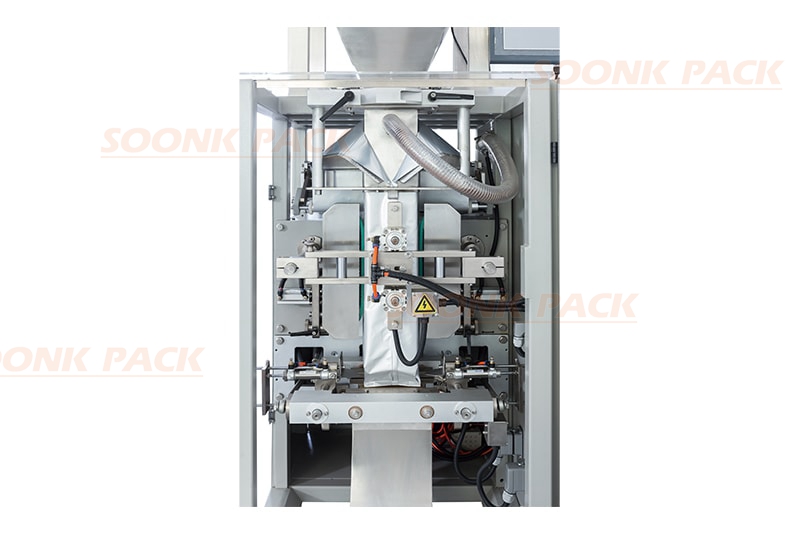

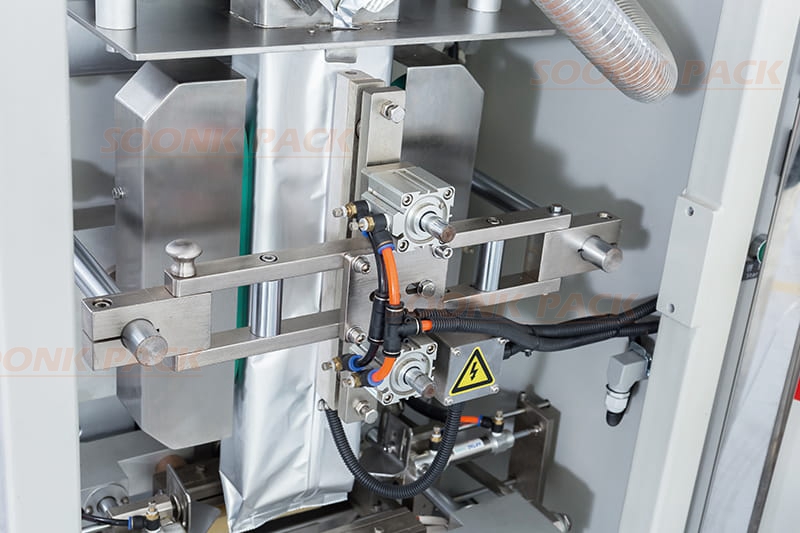

Main packing machine :Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

 Feeding conveyorl conveyor:The material is raised to the  4 head weigher at a uniform speed, controlled by the electric eye sensor to ensure sufficient material.

 4 head weigher:High-precision sensors enable accurate metering for instant implementation.According to the characteristics of the object to be measured, the opening and closing speed of the hopper door can be finely adjusted to prevent breakage.

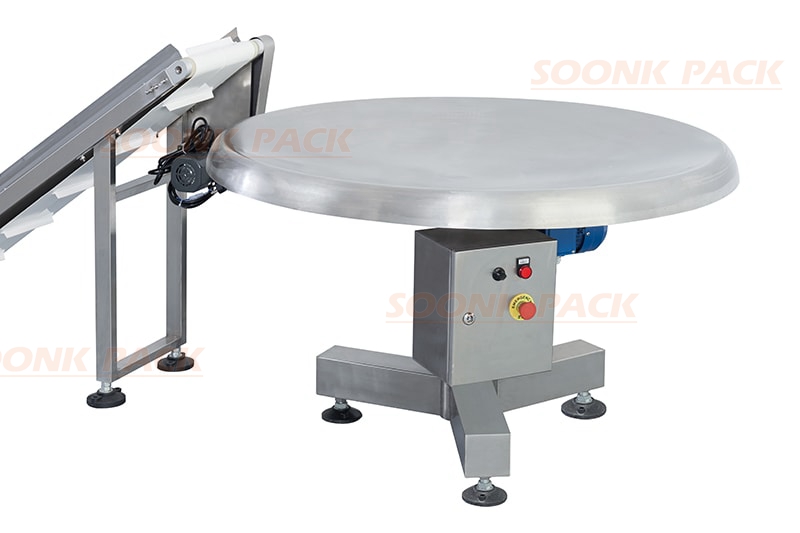

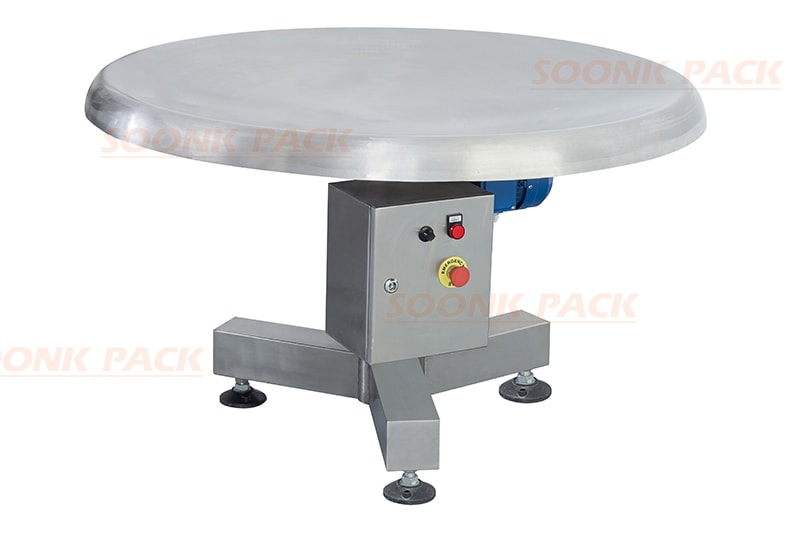

Output conveyor :The finished product conveyor is installed at the product outlet of the main machine of the packaging machine, which allows the finished product to be transported away from the bottom of the main machine, avoiding product accumulation and blockage and causing downtime.





Machine Features

This machine is a kind of packaging machine for small grain products with normal packaging weight within 50-1000g, high precision, fast packaging speed, high output and stable operation. It is an automatic packaging machine with high cost performance.

The material is lifted to the 4 head weigher by the feeding machine for target weighing, and then the material with the target weight is filled into the packaging machine and packaged into bags, and then the finished product conveyor outputs the packed bags. It can realize the whole process of automatic lifting, measuring, forming and sealing bags and date coding.

Application

Suitable for weighing sugar, salt, seeds, rice, monosodium glutamate, feed, milk powder, coffee, soybean, sesame, and other daily food, spices such as small granular, powder materials quantitative weighing.

Model

SK-L420

Air Consumption

0.65mpa, 2.5m 3/min

Packaging Film

180-420mm

Bag length

80-300mm

Bag Width

80-200mm

Packing Film Roll Diameter

Max.360mm

Packaging Speed

5-80bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 3kW

Dimension

(L)1450*(W)1000*(H)1650mm

Total Weight of Machine

500kg

Gusset bag

Gusset bag.png

We need to know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. Gusset Bag Snacks Food Automatic Packing Machine, customers' common questions are as follows.

1. Judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. The width of the bag is fixed because the length of the bag is adjustable. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. If the pin device is not needed, just remove the pin device. Yes, if you don't need the pins, you can change the back seal bag. 5. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 6. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 7. How many days does it take to produce a machine? The production time is about 30-45 days, because our machines are installed and debugged at the same time, so as to ensure high quality. 8. The customer also asked how long is the machine warranty period? We offer 12 months warranty, starts from the issue date of bill of loading and life time maintenance service. 9. Customers most often ask how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
