Gusset Bag Snacks Food Automatic Packing Machine


  • The most important feature of this machine is that it can pack the exquisite blank holder type gusset bag. The machine uses the measuring cup type measurement, which reduces the cost of the packaging machine and meets the customer's scheme of automatic packaging and low accuracy requirements.
  • This machine measures the weight of the material through a multi-head weighing device, and then fills the material with the target weight into a synthetic bag in the packaging machine, and then outputs the packaged bag from the finished product conveyor. It can realize the packaging process of automatic measurement, forming and sealing, and date coding.

Machine Component

1) Main packing machine, 2) multi head combination scale, 3) z type material conveyor, 4) supporting platform.

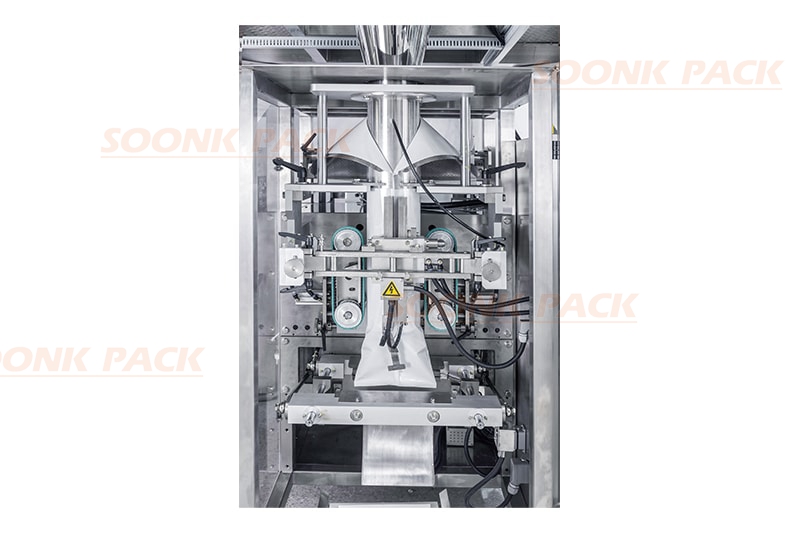

Main packing machine :Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

Multi head combination scale: High-precision sensors enable accurate metering for instant implementation.According to the characteristics of the object to be measured, the opening and closing speed of the hopper door can be finely adjusted to prevent breakage. All parts are made of stainless steel and are clean and hygienic.Good compatibility and easy to use with other packaging equipment.

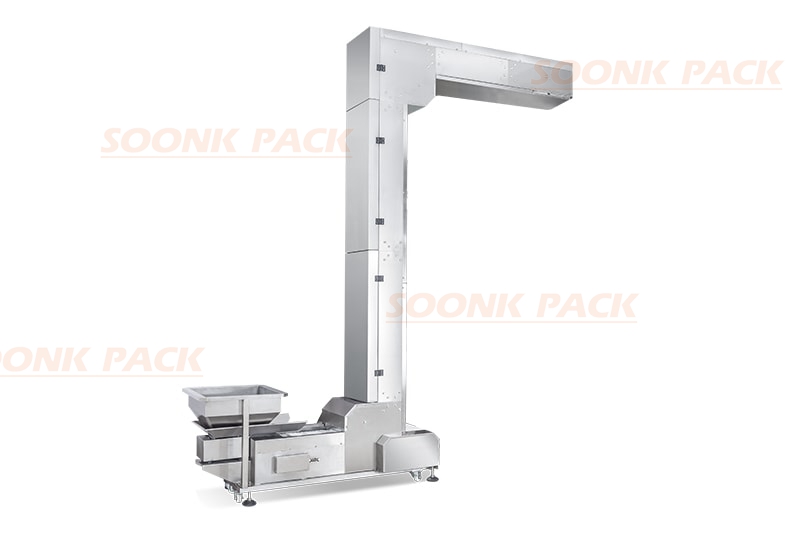

 Z type material elevator  : The Z-type feeder can control the speed, which can raise the material to the multi-head combined electronic scale at a uniform speed, and is controlled by electric eye induction to ensure sufficient material.

Supporting platform  :With a thick and stable support platform, workers can directly stand on it to clean up the computer combinated scale or carry out maintenance, which is convenient, fast, safe and reliable.







Machine Features

No information.

The Z-type feeder vibrates and feeds the materials to the multi head combined electronic scale for automatic weighing, and then fills the materials with the target weight into the packaging machine, and then the finished product conveyor outputs the packed bags. It can realize automatic lifting, measuring, forming and sealing bags, date coding, and output a series of automatic packaging processes. The most important feature of this machine is that it can pack the exquisite blank holder type gusset bag type.

Application

It is suitable for the quantitative weighing and packaging of puffed food such as chips, puffed food, large shell nuts such as walnuts, cashew,pistachios, candy, melon seeds, biscuits, fruit and vegetable chips, fried goods, jelly, plum, chocolate and other leisure food, quick-frozen dumplings, frozen food, pet food, hardware and other granular, block, strip materials.

Model

SK-L420

Air Consumption

0.65mpa, 2.5m3/min

Packaging Film

180-420mm

Bag Length

80-300mm

Bag Width

80-200mm

Packing Film Roll Diameter

Max.360mm

Packaging Speed

5-80bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 2.4kW

Dimension

(L)1100*(W)925*(H)1650mm

Total Weight of Machine

450kg

Gusset bag

Gusset bag.png

First of all, we must know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. Gusset Bag Snacks Food Automatic Packing Machine, customers' common questions are as follows.

1. First of all, we must judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. The width of the bag is fixed because the length of the bag is adjustable. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. If the pin device is not needed, just remove the pin device. Yes, if you don't need the pins, you can change the back seal bag. 5. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 6. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 7. How many days does it take to produce a machine? The production time is about 30-45 days, because our machines are installed and debugged at the same time, so as to ensure high quality. 8. The customer also asked how long is the machine warranty period? We offer 12 months warranty, starts from the issue date of bill of loading and life time maintenance service. 9. Customers most often ask how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
