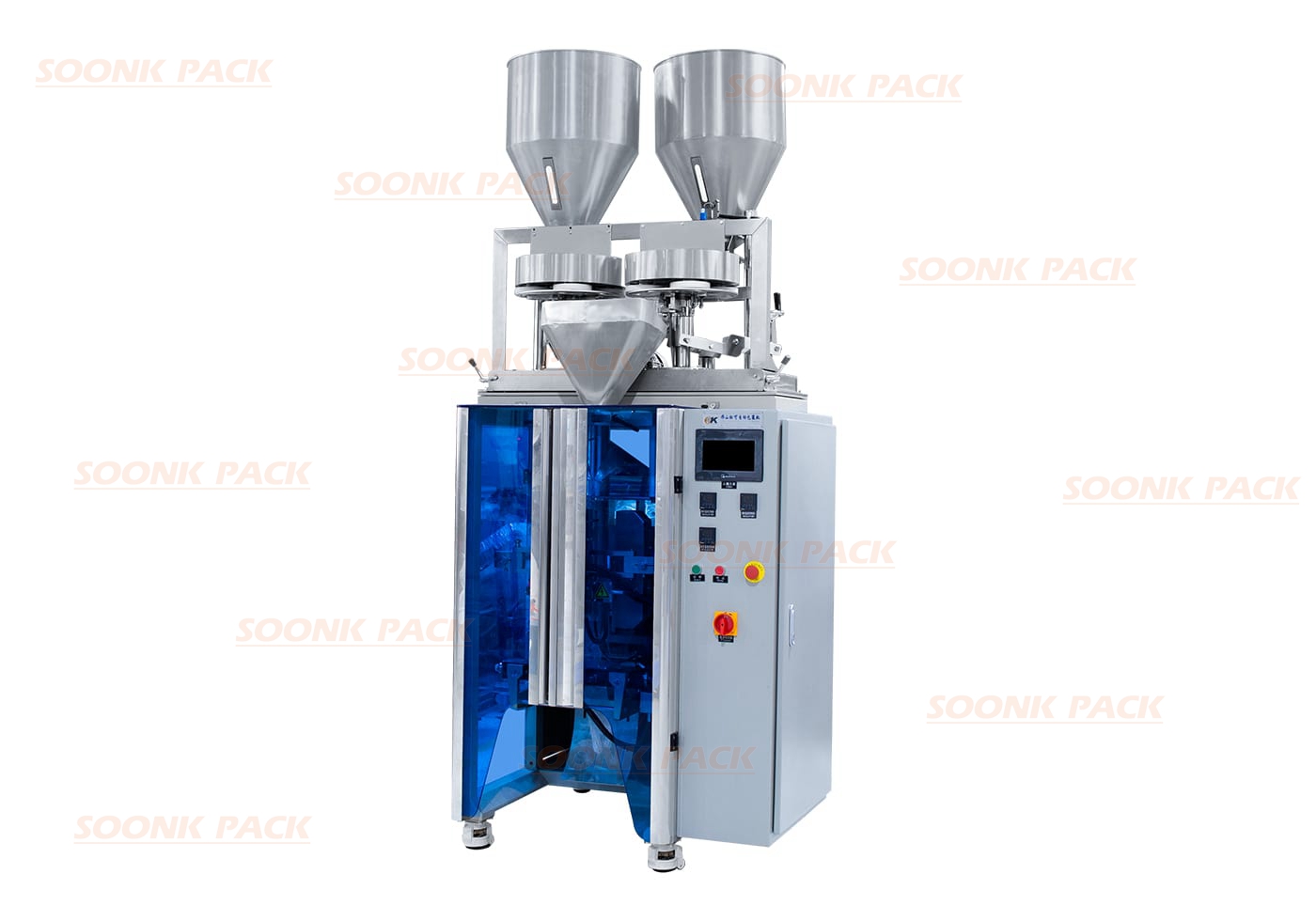

High Efficient Gusset Bag Snacks Packing Machine


  • Suitable for packaging non-fragile and easy to measure regular shape materials, such as rice, beans, seeds, melon seeds, Fried goods, puffed food, candy, salt, monosodium glutamate,  and so on.
  • The most important feature of this machine is that it can pack the exquisite blank holder type gusset bag. The machine uses the measuring cup type measurement, which reduces the cost of the packaging machine and meets the customer's scheme of automatic packaging and low accuracy requirements.

Machine Component

1) Main packing machine, 2) Volumetric cup filling metering device.

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

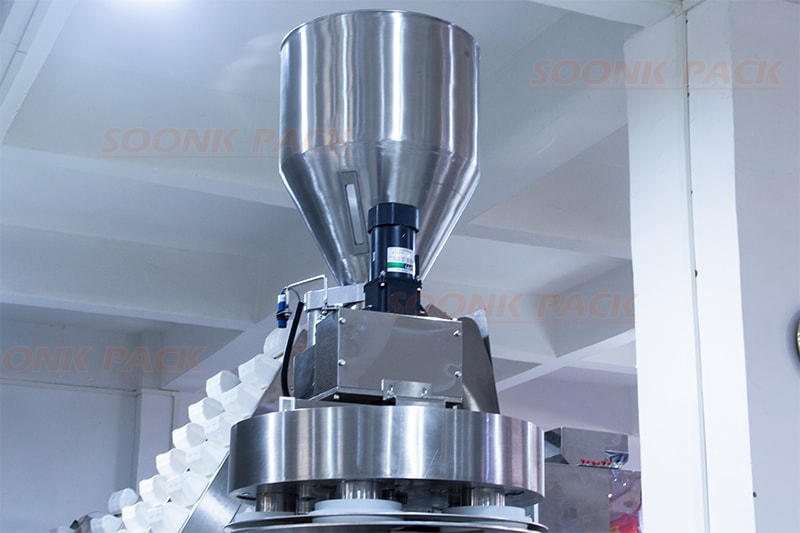

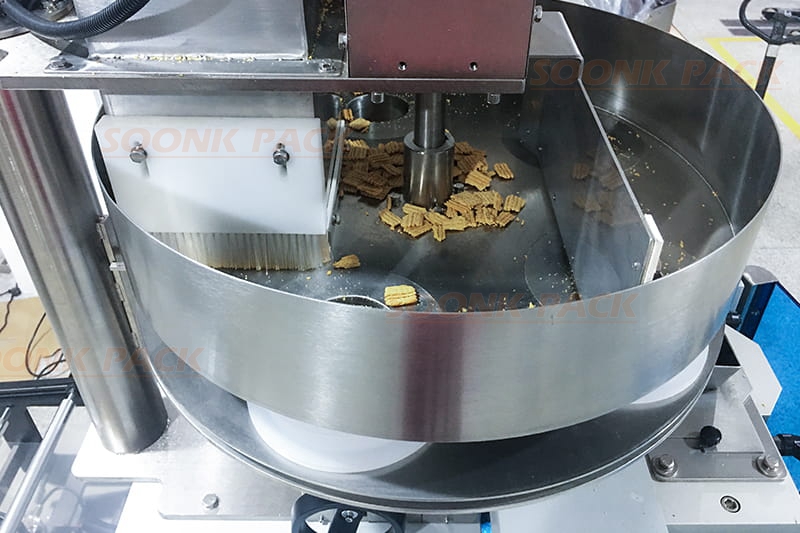

Volumetric cup filling metering device: This Volumetric  cup is a customized cup, and the related measuring cup is customized according to the weight of each package. You can also choose the universal cup, which can be different weights according to your needs.





Machine Features

The most important feature of this machine is that it can pack the exquisite blank holder type gusset bag. The machine uses the measuring cup type measurement, which reduces the cost of the packaging machine and meets the customer's scheme of automatic packaging and low accuracy requirements.

The weight of the material is measured by the volumetric cup measuring device, and then the material with the target weight is filled into the packaging machine to get the bags. It can realize the packaging process of automatic measurement, bag sealing and date coding.

Application

Suitable for packaging non-fragile and easy to measure regular shape materials, such as rice, beans, seeds, melon seeds, Fried goods, puffed food, candy, salt, monosodium glutamate, washing powder, feed and so on.

Model

SK-L420

Air Consumption

0.65mpa, 2.5m3/min

Packaging Film

180-420mm

Bag Length

80-300mm

Bag Width

80-200mm

Packing Film Roll Diameter

Max.360mm

Packaging Speed

5-80bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 2.4kW

Dimension

(L)1100*(W)925*(H)1650mm

Total Weight of Machine

450kg

Gusset bag

Gusset bag.png

We need to  know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. High Efficient Gusset Bag Snacks Packing Machine, customers' common questions are as follows.

1.To judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. The width of the bag is fixed because the length of the bag is adjustable. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. If the gusset device is not needed, just remove the  device. Yes, if you don't need the gusset bag, you can change the pillow bag. 5. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 6. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 7. How many days does it take to produce a machine? The production time is about 30-45 days, because our machines are installed and debugged at the same time, so as to ensure high quality. 8. The customer also asked how long is the machine warranty period? We offer 12 months warranty, starts from the issue date of bill of loading and life time maintenance service. 9. Customers most often ask how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
