Pillow bag  small pouch automatic ketchup packaging machine


  • The components of this machine: packaging host and liquid canned metering device.
  • The liquid pump of this machine is a pneumatic pump, which is suitable for all kinds of pure sauces or small liquid packages with a fast packaging speed, such as tomato sauce, chili sauce, salad dressing, etc.

Machine Component

1) Main packing machine,2)  liquid filling metering device.

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output

Liquid filling metering device: Small size, CNC device, automatic filling, improve filling efficiency, filling accuracy and can adjust the weight of relevant data according to actual needs.





Performance Characteristics

1.Adopts light sensor control system , stepping motor control film transporting system , reliable , and stable performance.
2.Using VVVF , operation is much stable , low noise and low malfunction.
3.It can finish automatically all processes , such as measuring , filling and bag marking.
4.With spring pressure knife principle , pneumatic cutting , 5 linking bags is more stable.

The machine is a pneumatic liquid packaging machine, for small bags of pure sauce or liquid packaging, packaging speed is fast. The material can be manually put into the liquid hopper or can be directly absorbed into the liquid pump to complete the measurement, and then the target weight of the material is filled into the packaging machine to seal the synthetic bag. The machine can realize automatic lifting, measuring, forming and sealing bags, date printing and a series of automatic packaging processes.

Application

Liquids/sauces: shampoo, rice wine, soy sauce, juice, beverages, ketchup, peanut butter, jam, chili sauce, etc.

Model

SK-L320QD-Y

Packaging Film

Max 320mm

Bag Length

50-200mm

Bag Width

30-150mm

Packing Film Roll Diameter

Max.300mm

Packaging Speed

15-60bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 2kW

Dimension

(L)1000*(W)840*(H)1900mm

Total Weight of Machine

350kg

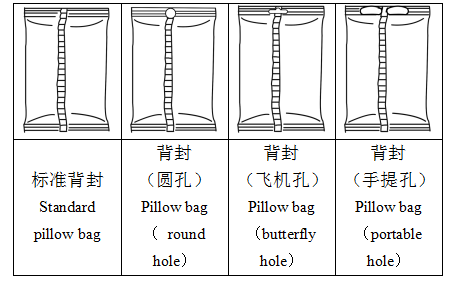

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

bag type 1.png

First of all, we must know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. Pillow Bag Small Pouch Tomato Sauce Automatic Packaging Machine, common questions from customers are as follows.

1. Need to judge whether the material is suitable for the machine? It’s best to send the materials and packaging film to our company for free testing. Regarding the materials, this liquid machine is suitable for products that are not drawn and have low viscosity. 2. Regarding the size of the bag, what should the customer do if the customer does not have a bag size ? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 5. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 6. How many days does it take to produce a machine? , The production time is about 20-30 days, because our machines are installed and debugged at the same time to ensure high quality. 7. The customer also asked how long is the machine warranty period? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 8. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
