Semi-automatic Packing Machine With Bucket Belt Conveyor


  • This machine is composed of a packaging machine host, a belt conveyor and a finished product conveyor.
  • This packaging machine is suitable for heavy products, the height of the factory is limited, and the economic budget is limited.
  • This machine is characterized by manual metering and feeding and chain-bucket conveying for convenient feeding or packaging of various materials.

Machine Component

1) Main packing machine, 2) belt conveyor, 3) output conveyor.

Main packing machine :Fully complete the production process of feeding, metering, filling, bag making, date printing and product output

 Belt conveyor:Through the conveyor belt, the material is accurately transported to the Z-type feeder, which is fast and effective.

Output conveyor :The finished product conveyor is installed at the product outlet of the main machine of the packaging machine, which allows the finished product to be transported away from the bottom of the main machine, avoiding product accumulation and blockage and causing downtime.

Machine Features

Belt conveyor: suitable for products with relatively large weight, and the height of the factory is limited and the economic budget is limited.

Put the weighed material into the belt conveyor, lift it to the packaging machine by the belt conveyor, then fill it into the packaging bag, and finally seal and cut the bag through high temperature.

All kinds of irregular, granular, block, strip, large items and heavy packaging, such as artificial flowers, various shapes of ice and products weighed in bulk etc.

Model

SK-L620BT

Packaging Film

Max 620mm

Bag Length

100-400mm

Bag Width

150-300mm

Packing Film Roll Diameter

Max.360mm

Packaging Speed

5-55bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 3kW

Dimension

(L)1780*(W)1300*(H)1950mm

Total Weight of Machine

700kg

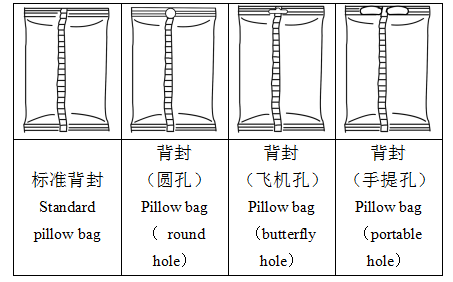

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

bag type 1.png

First of all, we must know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. SEMI-AUTOMATIC PACKING MACHINE WITH BUCKET BELT CONVEYOR, the frequently asked questions from customers are as follows.

1. Need to judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. The width of the bag is fixed because the length of the bag is adjustable. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 5. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 6. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 7. How many days does it take to produce a machine? The production time is about 30-45 days, because our machines are installed and debugged at the same time, so as to ensure high quality. 8. The customer also asked how long is the machine warranty period? We offer 12 months warranty, starts from the issue date of bill of loading and life time maintenance service. 9. Customers most often ask how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
