Sugar Sachet Packing Machine


  • This is three side sealing bag granule packing machine, which is a small machine for small gram weight granule material packing, with fast packing speed, small occupation area and economic benefits.
  • Features of volumetric cup metering device:
  • 1.4 groups of customized measuring cups are quantified, suitable for granular materials with good fluidity; 2.Equipped with fixed or mobile brushes for different materials to prevent breakage.

Machine Component

1) Main packing machine, 2) volumetric cup metering device.

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

Measuring cup measuring device: This measuring cup is a customized cup, and the related measuring cup is customized according to the weight of each package. You can also choose the universal cup, which can be different weights according to your needs.





Features of Volumetric Cup Metering Device

1. 4 groups of customized measuring cups are quantified, suitable for granular materials with good fluidity.

2. Equipped with fixed or mobile brushes for different materials to prevent breakage.

This is three side sealing bag granule packing machine, which is a small machine for small gram weight granule material packing, with fast packing speed, small occupation area and economic benefits.

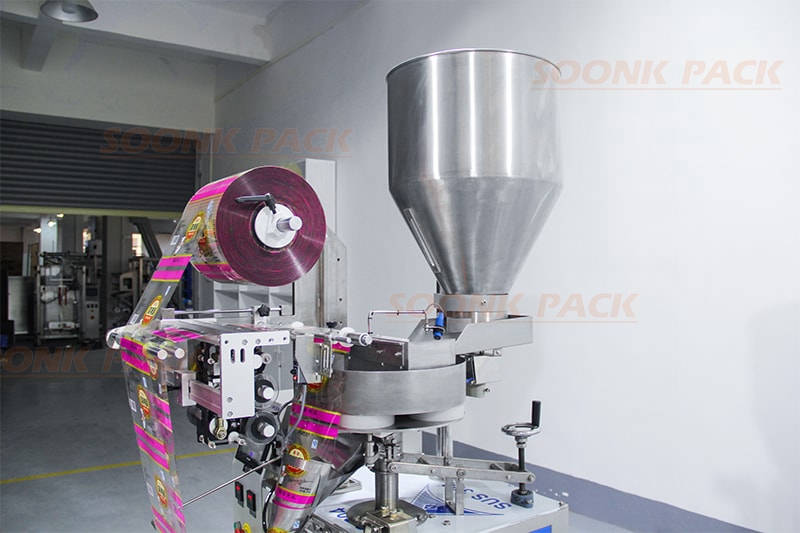

Put the material into the storage hopper, pass the vibration material down to the turntable, the volumetric cup metering completes the weight measurement, and then fill the target weight material into the packaging bag, and finally pass the high temperature seal and cut.

Application

Suitable for packaging non-fragile and easy to measure regular shape materials, such as sugar, rice, beans, seeds, melon seeds, Fried goods, puffed food, candy, salt, monosodium glutamate, washing powder, feed and so on.

Model

SK-L320A

Packaging Film

Max 320mm

Bag Length

50-200mm

Bag Width

30-150mm

Packing Film Roll Diameter

Max.300mm

Packaging Speed

30-80bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 2.2kW

Dimension

(L)1000*(W)840*(H)1900mm

Total weight of Machine

350kg

Three side seal

Three side seal.png

We need to know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. For Sugar Sachet Packing Machine, common questions from customers are as follows.

1. Need to judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 5. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 6. How many days does it take to produce a machine? , The production time is about 20-30 days, because our machines are installed and debugged at the same time to ensure high quality. 7. The customer also asked how long is the machine warranty period? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 8. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
