Tea Packing Machine for Inner and Outer Bags


  • This machine is suitable for one-time packaging of small particles such as 3-10 grams of tea, medicinal tea, health tea, grass roots and other small particles.
  • Packaging materials: tea filter paper, cotton thread, composite film and labels.

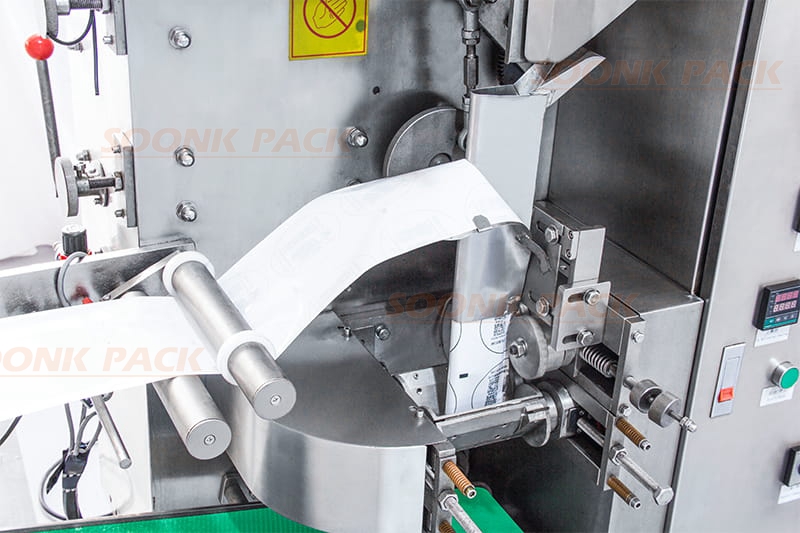

  • The inner and outer bag pulling film is controlled by a stepping motor, the bag length is stable and the positioning is accurate.

Machine Component

1) Main packing machine, 2) measuring cup metering device.

Sealing Type: Three sides sealing

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

Measuring cup measuring device: This measuring cup is a customized cup, and the related measuring cup is customized according to the weight of each package. You can also choose the universal cup, which can be different weights according to your needs.




Machine Features

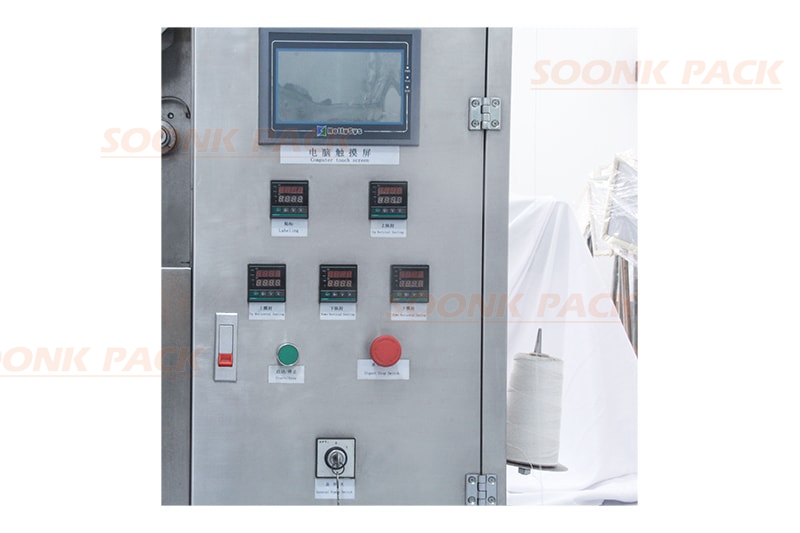

Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning. The temperature controller is adjusted by PID to make the temperature control more accurate. Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products.

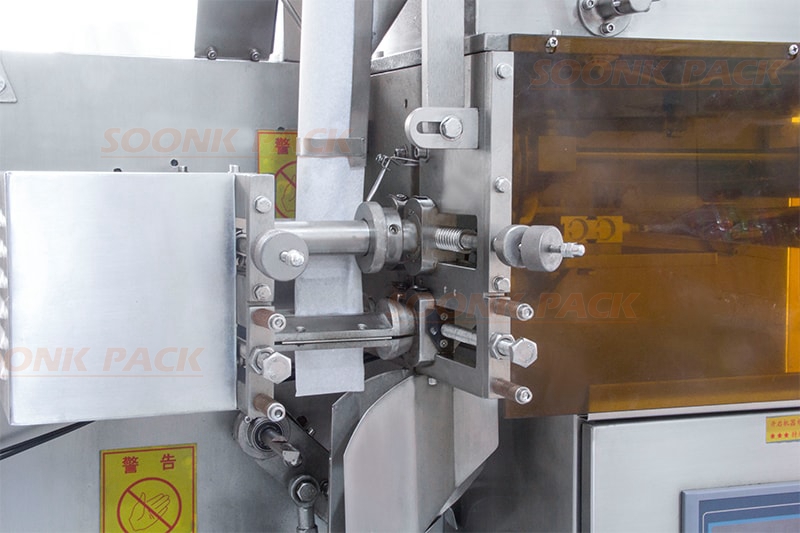

Put the material into the bin, put the vibrating material down on the turntable, measure the weight by measuring cup, then put the target weight material into the inner bag packing bag. After the inner bag packaging is completed, the outer bag is packaged, and finally sealed and cut by high temperature sealing and cutting.

Application

The machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials, such as: tea, herbal tea, health tea grass-root type and so on.

Packing material: filter paper, thread, composite membrane and labels.

Model

SK-L320

Measuring Scope

3 - 10 g (1.6 ~ 26 ml)

Inner Bag Size

L: 50 - 70 mm, W: 45 - 80 mm

Outer Bag Size

L: 80 - 120 mm, W: 75 - 95 mm

Packing Speed

30 - 40 bags/min

Dimension (L*W*H)

1750*740*1950 mm

Weight

500 kg

Total Power

AC220V/ 50Hz/3.7kw

Gas Source

≥0.4m /min

Three side seal

Three side seal.png

We need to know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. For Tea Packing Machine for Inner and Outer Bags, the common questions from customers are as follows.

1. Need to judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 5. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 6. How many days does it take to produce a machine? , The production time is about 20-30 days, because our machines are installed and debugged at the same time to ensure high quality. 7. The customer also asked how long is the machine warranty period? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 8. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
