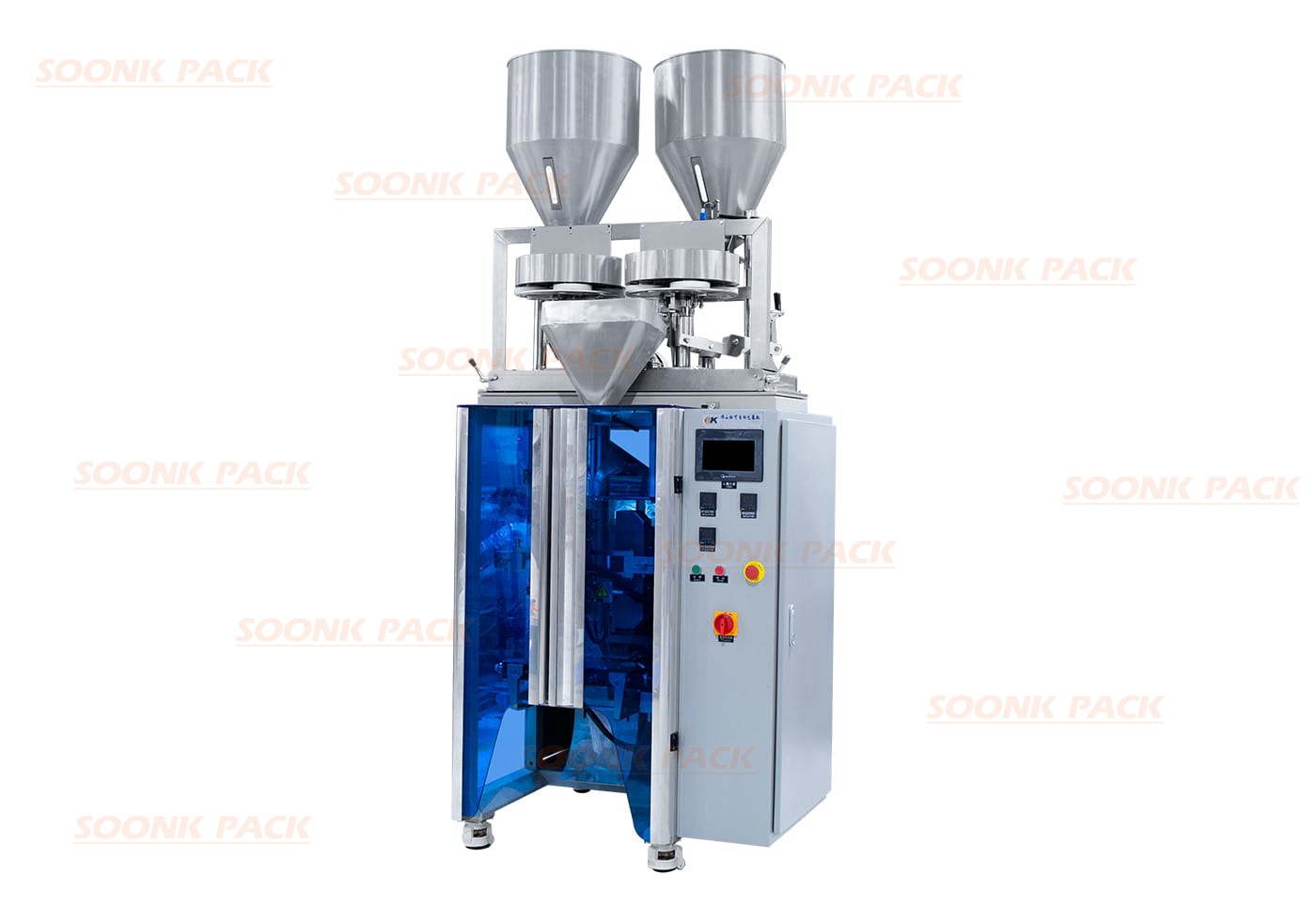

Two Different Products Filling Automatic Packing Machine for PE Film With Double Volumetric Cup


  • The main feature of the machine is that it can mix and pack two different granular products at the same time, and the double measuring cup type can measure different materials separately, so that the materials can be filled into one packaging bag at the same time. And this is the packing machine for PE film.
  • The biggest feature of this machine is that it is used for PE film packaging. PE film has special sealing characteristics, which is different from the conventional composite film sealing structure

Machine Component

1) Main packing machine, 2) Double volumetric cup devices.

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

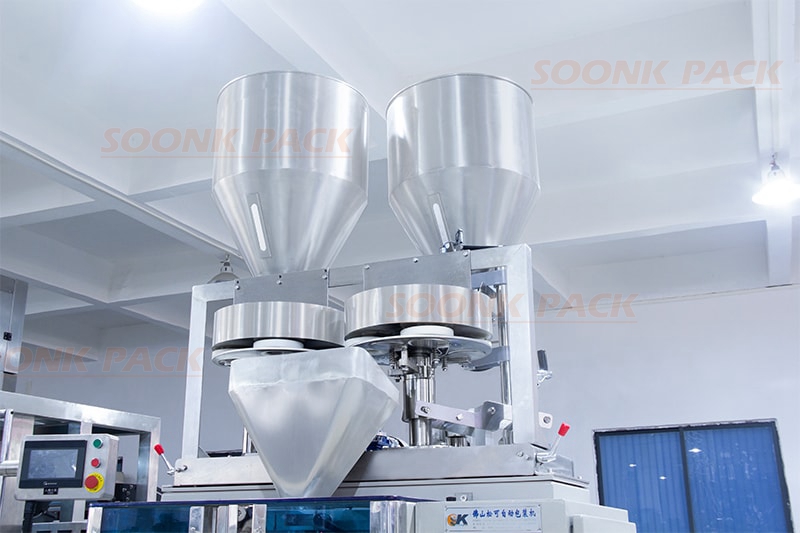

 Double volumetric cup devices. cup device: This measuring cup is a customized cup, and the related measuring cup is customized according to the weight of each package. You can also choose the universal cup, which can be different weights according to your needs.




Two Different Products Filling Automatic Packing Machine for PE Film With Double Volumetric Cup

Machine Features

The main feature of the machine is that it can mix and pack two different granular products at the same time, and the double measuring cup type can measure different materials separately, so that the materials can be filled into one packaging bag at the same time. And this is the packing machine for PE film.

Performance Characteristics

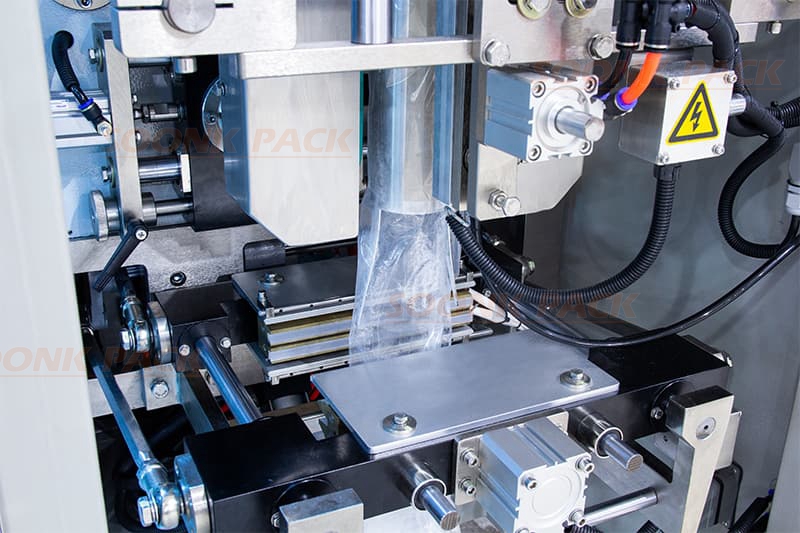

1. The vacuum pump film pulling system is adopted to ensure the smooth transmission of packaging film and the formation of bags.

2. Use imported cylinder to ensure good bagging sealing and clear sealing lines, prevent package bag from leaking air and reduce scrap rate.

3. Multiple language operating systems.

4. It is more convenient to replace the packaging film with an external film placement mechanism.

The material is manually loaded into the volumetric cup metering device, and the volumetric cup metering device completes the weight measurement. and then the material with the target weight is filled into the packaging machine. The machine can realize automatic lifting, measuring, forming sealing bag, date coding, a series of automatic packaging process.

Application

Suitable for packaging non-fragile and easy to measure small regular shape materials, such as rice, beans, seeds, melon seeds, Fried goods, puffed food, candy, salt, monosodium glutamate, washing powder, feed and so on.

Model

SK-L420

Packaging Film

Max 420mm

Bag Length

80-300mm

Bag Width

80-200mm

Packing Film Roll Diameter

Max.360mm

Packaging Speed

5-80bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 3kW

Dimension

(L)1450*(W)1000*(H)1650mm

Total Weight of Machine

500kg

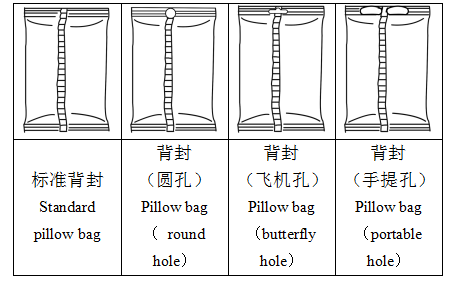

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

bag type 1.png

We need to know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. Two Different Products Filling Automatic Packing Machine for PE Film With Double Volumetric Cup, common questions from customers are as follows.

1. Need to judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 5. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 6. How many days does it take to produce a machine? , The production time is about 20-30 days, because our machines are installed and debugged at the same time to ensure high quality. 7. The customer also asked how long is the machine warranty period? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 8. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
