VFFS Granular Small Packing Machine


  • This machine is suitable for small packages of puffed food, shrimp crackers, peanuts, melon seeds, rice, seeds, monosodium glutamate, corn flakes and other granular, flake, and solid materials.
  • This machine is characterized by compact structure, firm structure, reasonable design, and simplicity. Using photoelectric eye control system, stepping motor pull film, stable and reliable performance, low noise.

Machine Component

1) Main packing machine,2)  measuring cup metering device.

Main packing machine:Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.

Measuring cup metering device: this measuring cup is a universal cup. It can be packed with different weights according to your needs. You can also choose to customize the measuring cup. According to the weight of each package, you can customize the measuring cup.





Machine Features

1. Fully complete the production process of feeding, metering, filling, bag making, date printing and product output.
2. The design of the whole machine is simple, reasonable, stable in performance, easy to operate and convenient for daily maintenance.
3. The metering cups device can be designed according to the material volume, and the replacement is convenient.

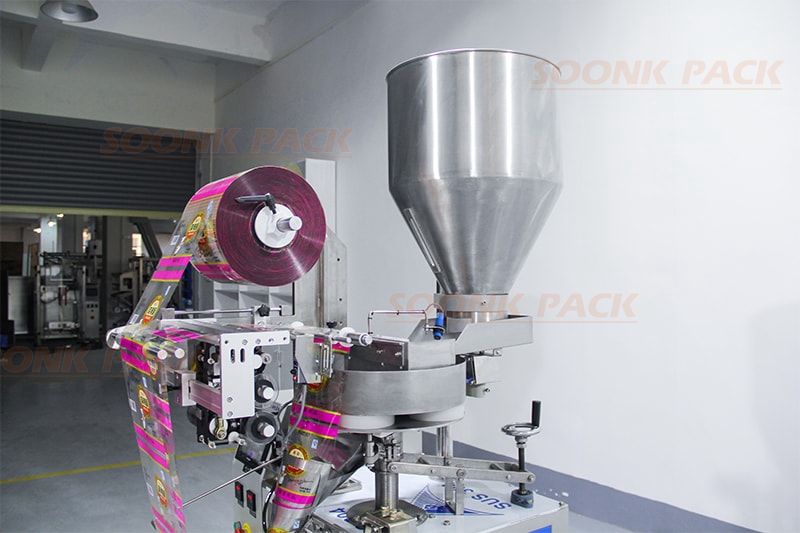

By manually feeding the hopper and then vibrating the material into the measuring cup, and then the material with the target weight is filled into the packaging machine. The machine can realize measuring, forming sealing bag, date coding, a series of automatic packaging process.

Application

Suitable for packaging non-fragile and easy to measure regular shape materials, such as rice, beans, seeds, melon seeds, Fried goods, puffed food, candy, salt, monosodium glutamate, washing powder, feed and so on.

Model

SK-L320

Packaging Film

Max 320mm

Bag Length

50-200mm

Bag Width

30-150mm

Packing Film Roll Diameter

Max.300mm

Packaging Speed

30-90bags/min

Packing Thickness

0.04-0.08mm

Power Supply

220V, 50Hz/60Hz, 2kW

Dimension

(L)1000*(W)840*(H)1900mm

Total weight of Machine

350kg

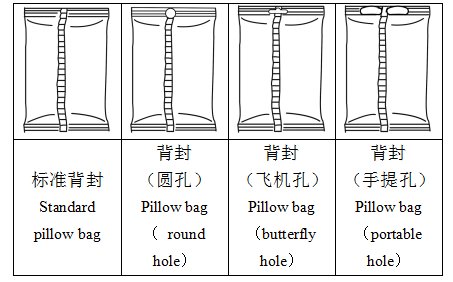

Standard pillow bag can be equipped with punching devices (butterfly holes, round holes, portable holes)

bag type 1.png

We need to know the material, bag size and weight, these things are very important to the packaging machine. The designer will provide a schematic diagram and a salesperson to provide a quotation plan based on the customer's material, weight and bag size. For VFFS Granular Small Packing Machine, the frequently asked questions from customers are as follows.

1. Need to judge whether the material is suitable for the machine? It is best to send the materials and packaging film to our company for free testing. 2. Regarding the size of the bag, what should the customer do if there is no bag size? The suggestion is to experiment with local markets and supermarkets to see which bag type and the weight you want to pack are the most popular. 3. Is the more shapers the better, so that more bag sizes can be packed? A set of machines can produce up to 3 formers, because the technology of replacing the formers is complicated, and changing the formers multiple times will result in the bag deviation. 4. How to choose the material of the machine? Our machine has two materials, one is stainless steel and carbon steel. If you are pursuing high quality, choose stainless steel. If your financial budget is difficult, carbon steel is recommended. Although the appearance of the machine is carbon steel, the parts that come into contact with the material are made of stainless steel. 5. What is the error? Generally speaking, it is ±1% (depending on the characteristics of the material) 6. How many days does it take to produce a machine? , The production time is about 20-30 days, because our machines are installed and debugged at the same time to ensure high quality. 7. The customer also asked how long is the machine warranty period? We offer 12 months warranty,starts from the issue date of bill of loading and life time maintenance service. 8. Customers ask most how to install and operate the video? You can't worry about this at all. Our company needs to provide user manuals, installation videos and operation of the machine, you can provide technical services when you encounter problems.
